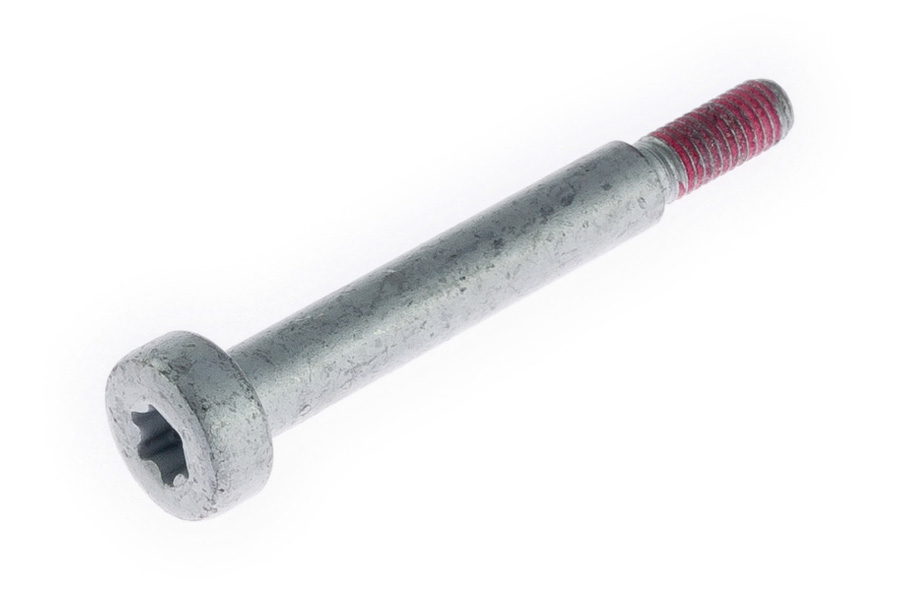

4417912-06 - Bolt Shoulder M5x49 10.9 t647+precote 85-8

Bolt Shoulder M5x49 10.9 t647+precote 85-8

Part № 4417912-06

Coating ZNF-E
headtype Cap
threadsize M5
totallength 49
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

1100
HasLock

1
HasShoulder

1
HeadDiam

12
HeadHeight

5
HeadType

Cap
Length

49
LockingType

MicroEncapsulation
PilotType

Undefined
PropertyClass

SteelPC10_9
ShoulderDiam

6.4
ShoulderHeight

36.2
ThreadLength

12.8
ThreadPitch

0,8
ThreadSize

M5
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

30
ToolType

InternalTorx
TotalLength

49
WasherType

Undefined
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

4417912-06

The Bolt Shoulder M5x49 10.9, part number 4417912-06, is a versatile solution crafted for robust applications. Made from strong steel with a property class of 10.9, this bolt offers exceptional durability and reliability, ideal for demanding environments. With a thread size of M5 and a thread pitch of 0.8, it ensures a secure fit, reducing the risk of loosening in assemblies subject to movement or vibration.

This bolt features a shoulder diameter of 6.4 mm and a shoulder height of 36.2 mm, enhancing stability and load-bearing capability. The total length is 49 mm with a thread length of 12.8 mm, providing flexibility for various installation requirements. The head, measuring 12 mm in diameter and 5 mm in height, is a cap type, designed for easy application and removal using an internal Torx tool of size 30.

Equipped with microencapsulation locking technology, this bolt offers additional security for applications requiring a strong, vibration-resistant connection. Its Precote 85-8 coating ensures enhanced corrosion resistance. With a box quantity of 1100, it suits bulk use in manufacturing or automotive sectors.

Sourced from Tiers, this bolt blends precision engineering with high-performance standards, catering to professionals needing reliable fasteners. Explore the Facil webshop for this essential component and streamline your procurement process.
