7420968287 - Axe d'articulation pivot

Axe d'articulation pivot

Part № 7420968287

Coating S2S
headtype HexgonFlange
threadsize M10
totallength 65.5
Request quantity

Technical details

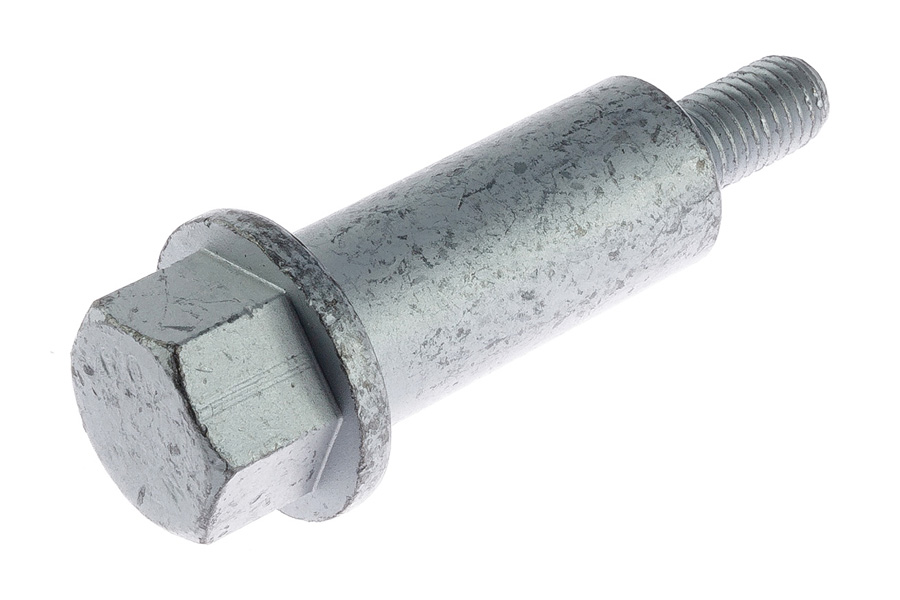

Feature images are indicative only. Refer to technical drawing for final dimensions.

HasShoulder

1
HeadDiam

30
HeadHeight

17
HeadType

HexgonFlange
Length

65.5
LockingType

Undefined
PilotType

Undefined
PropertyClass

SteelPC10_9
ShoulderDiam

20
ShoulderHeight

45.5
ThreadLength

20
ThreadPitch

1,5
ThreadSize

M10
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

21
ToolType

ExternalHexagon
TotalLength

65.5
WasherType

Undefined
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

7420968287

The "Axe d'articulation pivot" (Part Number: 7420968287) is a robust component designed for precision and strength in a variety of applications. Manufactured by VGTO, this bolt is crafted to meet high standards of durability and reliability. Featuring a HexgonFlange head type, it ensures a secure fit and easy installation with an external hexagon tool size of 21.

With a total length of 65.5 mm, this bolt offers optimal performance. The shoulder measures 20 mm in diameter, providing additional support in applications requiring enhanced stability. The thread size of M10, combined with a thread pitch of 1.5, ensures compatibility with standard metric nuts, delivering a strong and enduring connection.

This component features a thread length of 20 mm and a head diameter of 30 mm, designed to withstand mechanical stress while maintaining integrity. The high-grade SteelPC10_9 property class ensures that it can cope with demanding environments, providing peace of mind in every application. Enhance your project’s functionality with this essential bolt, tailored for excellence and efficiency.

The coating provides added protection against corrosion, extending the lifespan of the bolt even in challenging conditions. Whether used in the automotive industry or other technical applications, this bolt is an invaluable asset. By integrating this component, professionals can ensure lasting results and superior performance.
