Technical details

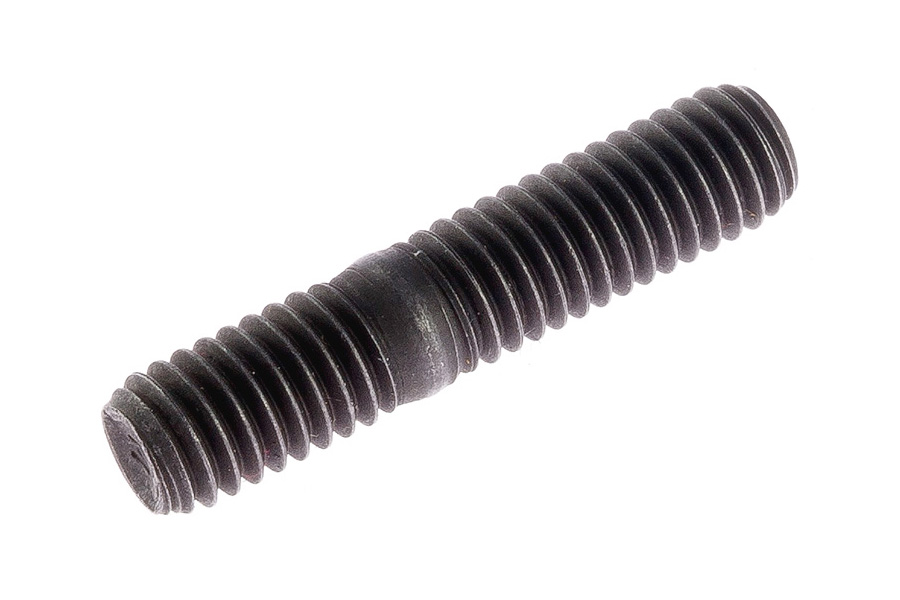

Feature images are indicative only. Refer to technical drawing for final dimensions.
| Comment | 3/8 UNC thread |
|---|---|
| DriveSide | None |
| LengthA | 18 |
| LengthB | 22 |
| LockingTypeA | Undefined |
| LockingTypeB | Undefined |
| PilotTypeA | Undefined |
| PilotTypeB | Undefined |
| PropertyClass | SteelPC8_8 |
| StudLength | 45 |
| ThreadLengthA | 18 |
| ThreadLengthB | 22 |
| ThreadPitchA | 16 |
| ThreadPitchB | 16 |
| ThreadSizeA | |
| ThreadSizeB | 3/8 |
| ThreadSpecialA | Standard |
| ThreadSpecialB | Standard |
| ThreadTypeA | Unified |
| ThreadTypeB | Unified |
| ToolType | None |
| WasherType | Undefined |
| Coating | View details |
