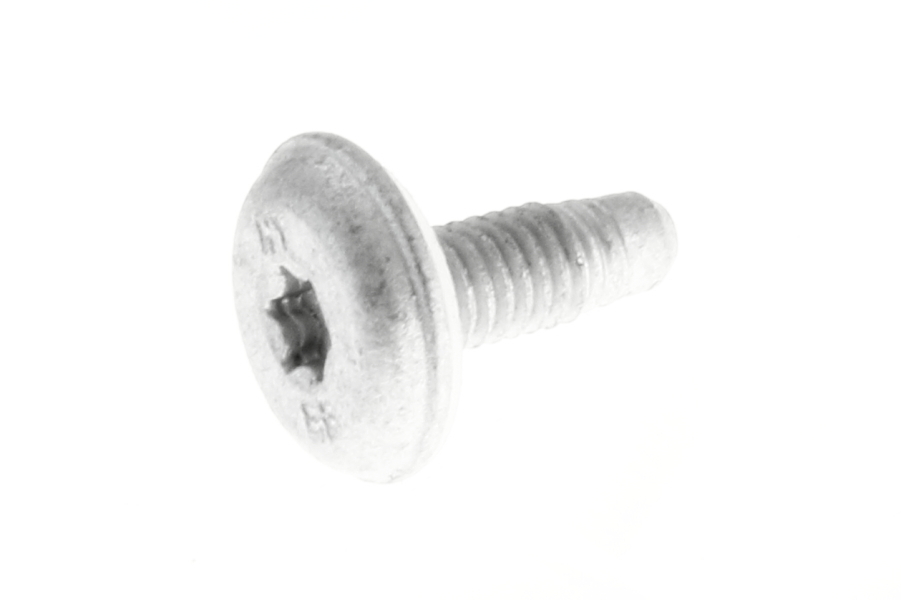

A0119906704 - FILLISTER HEAD SCREW WITH

FILLISTER HEAD SCREW WITH

Part № A0119906704

Coating DBL 9440.40
headtype PanFlange
threadsize M6
totallength 16
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

500
HasPilot

1
HasWasher

1
HeadDiam

16.5
HeadHeight

3.3
HeadType

PanFlange
Length

10.7
LockingType

Undefined
PilotType

Mathread
PropertyClass

SteelPC8_8
ThreadLength

8.7
ThreadPitch

1
ThreadSize

M6
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

30
ToolType

InternalTorx
TotalLength

16
WasherDiam

15
WasherHeight

0.5
WasherType

Flat
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

A0119906704

The Fillister Head Screw, part number A0119906704, is an essential component in our lineup of bolts. Engineered for durability and precision, this screw is ideal for a range of applications where secure fastening is required. Each box contains 500 units, ensuring you have ample supply to meet the demands of your projects.

Crafted from robust steel, classified under Property Class SteelPC8_8, this screw offers reliable strength and longevity. Its PanFlange head type, combined with a 16.5 mm diameter, provides optimal surface contact, enhancing the holding power.

The screw boasts a Metric thread type, with a ThreadSize of M6 and a ThreadPitch of 1, allowing for a precise fit into compatible components. With a total length of 16 mm, including a thread length of 8.7 mm, this screw accommodates a variety of thicknesses.

Equipped with a Mathread pilot type, it ensures smooth engagement with receiving threads, reducing the risk of cross-threading. Additionally, the screw includes an InternalTorx tool interface, offering ease of installation and removal.

Designed with a Flat washer type, the Fillister Head Screw also features a washer diameter of 15 mm and a washer height of 0.5 mm. This enhances its stability and load distribution, making it suitable for applications that require dependable performance under pressure.

This Fillister Head Screw is a practical choice for anyone seeking reliable, high-quality fastening solutions. Explore the full range of specifications and place your order today.
