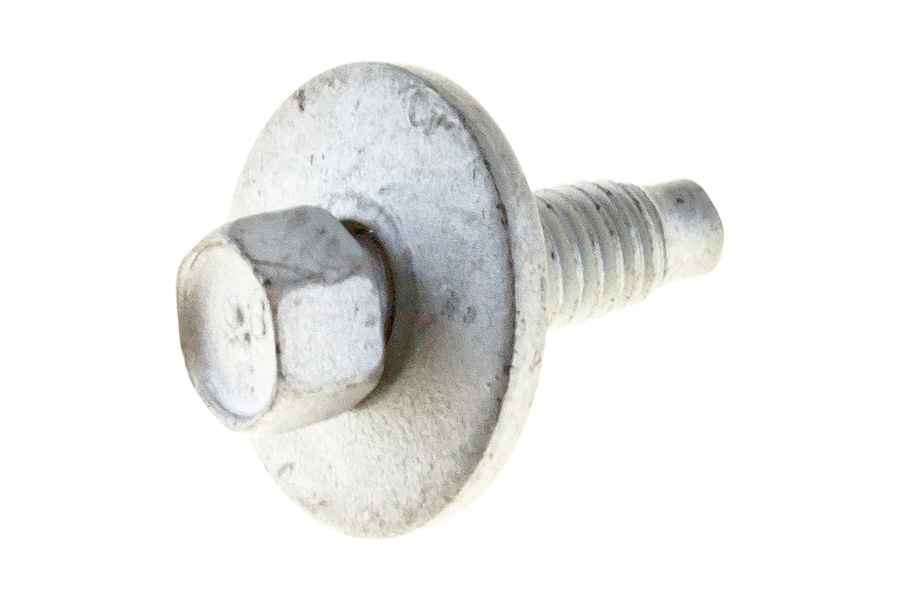

AY00119ADD - M6-1.0x16 HEX HD MACH SCRSEM W/PILOT PC 9.8 S301

M6-1.0x16 HEX HD MACH SCRSEM W/PILOT PC 9.8 S301

Part № AY00119ADD

Coating S301
headtype Hexagon
threadsize M6
totallength 18.3
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

2000
HasPilot

1
HasWasher

1
HeadHeight

4
HeadType

Hexagon
Length

16
LockingType

Undefined
PilotType

Dog
PropertyClass

SteelPC9_8
ThreadLength

14
ThreadPitch

1
ThreadSize

M6
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

8
ToolType

ExternalHexagon
TotalLength

18.3
WasherDiam

19.4
WasherHeight

1.8
WasherType

Conical
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AY00119ADD

Our M6-1.0x16 Hex Head Machine Screw, part number AY00119ADD, is designed for precision and durability. This bolt is a reliable choice for various mechanical applications, sourced from DTNA, Tiers, combining quality with engineering excellence. With a box quantity of 2000, it ensures you always have an ample supply for extensive projects.

Featuring a hexagon head type, this bolt is easy to install and provides a secure fit. Its thread size of M6, combined with a thread pitch of 1.0, ensures compatibility with standard metric applications, making it suitable for multiple uses in the automotive sector and beyond.

The built-in washer and pilot offer added stability and ease during installation, reducing the risk of misalignment. Engineered with a steel property class of PC 9.8, it offers exceptional strength, standing up to demanding conditions. The total length of 18.3mm and a washer diameter of 19.4mm further enhance its functionality, providing a robust and reliable connection.

This sturdy bolt features an external hexagon tool type, requiring a tool size of 8 for installation. This design choice facilitates the application process, allowing for a straightforward fastening mechanism that minimizes downtime.

This product is a must-have in any toolkit, whether for professional or personal projects, offering both versatility and dependability in one comprehensive package.
