AY00125ADD - M6-1.0x35 HEX HD MACH SCRSEM W/PILOT PC 9.8 S56

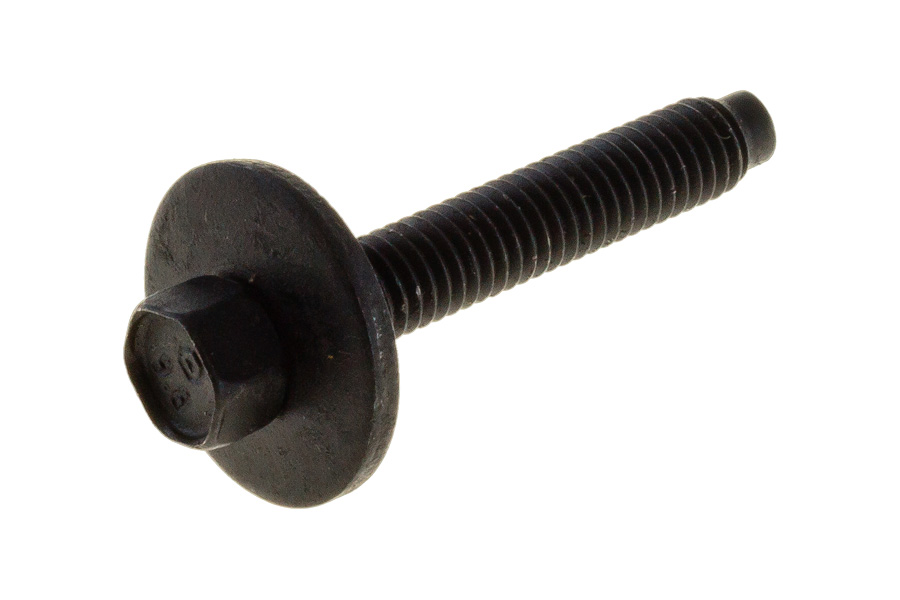

M6-1.0x35 HEX HD MACH SCRSEM W/PILOT PC 9.8 S56

Part № AY00125ADD

Coating S428
headtype Hexagon
threadsize M6
totallength 37.3
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

25
HasPilot

1
HasWasher

1
HeadHeight

4
HeadType

Hexagon
Length

35
LockingType

Undefined
PilotType

Dog
PropertyClass

SteelPC9_8
ThreadLength

33.2
ThreadPitch

1
ThreadSize

M6
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

8
ToolType

ExternalHexagon
TotalLength

37.3
WasherDiam

19.4
WasherHeight

1.8
WasherType

Conical
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AY00125ADD

The M6-1.0x35 HEX HD MACH SCRSEM W/PILOT, identified by part number AY00125ADD, is an essential component for secure fastening solutions. Designed with precision, this bolt features a hexagon head, ensuring easy application and a firm grip. Its design includes a built-in conical washer, enhancing stability and even pressure distribution during installation. Measuring 35 mm in length, this bolt has a thread size of M6 and a thread pitch of 1.0, allowing for precise and reliable engagement with corresponding nuts and components.

Crafted from high-strength SteelPC9_8, this bolt combines durability with resilience, making it suitable for applications exposed to dynamic forces and vibrations. The integration of a dog type pilot facilitates streamlined alignment and insertion, reducing wear on threaded parts. With a box quantity of 25, it's an efficient choice for both assembly lines and individual projects, offering convenience and consistency in every pack.

Sourced from Tiers, DTNA, a reputable name in the industry, this bolt reflects a commitment to quality and reliability. Its external hexagon tool compatibility ensures versatility with a variety of standard tools, while the total length of 37.3 mm provides ample reach for varied applications. Explore how this bolt can enhance your assembly efficiency, providing a robust solution for your fastening needs.
