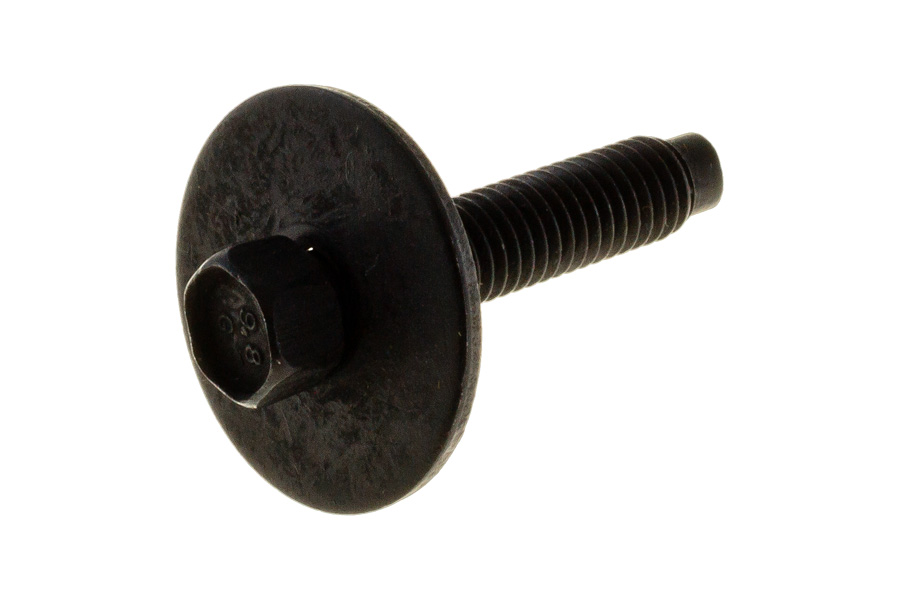

AY00138ADD - M8-1.25x38.5 HEX HD MACH SCR SEMS DOG PT PC 9.8 S424

M8-1.25x38.5 HEX HD MACH SCR SEMS DOG PT PC 9.8 S424

Part № AY00138ADD

Coating S424
headtype Hexagon
threadsize M8
totallength 38.5
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

HasPilot

1
HasWasher

1
HeadHeight

6
HeadType

Hexagon
Length

38.5
LockingType

Undefined
PilotType

Dog
PropertyClass

SteelPC9_8
ThreadLength

29.5
ThreadPitch

1,25
ThreadSize

M8
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

10
ToolType

ExternalHexagon
TotalLength

38.5
WasherDiam

29.7
WasherHeight

2.3
WasherType

Flat
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AY00138ADD

The M8-1.25x38.5 HEX HD MACH SCR SEMS DOG PT PC 9.8 S424, part number AY00138ADD, is a reliable choice for your fastening needs. Crafted for precision, this bolt combines strength and functionality, making it suitable for various applications. With a hexagon head type and total length of 38.5 mm, it ensures a secure fit and robust connection.

Featuring a thread size of M8 and a thread pitch of 1.25, this bolt offers compatibility with metric nuts, providing a tight and lasting hold. The addition of a flat washer enhances stability during assembly, reducing the risk of loosening under vibration. Manufactured by a reputable source, DTNA, it guarantees durability and performance, meeting high industry standards.

The dog point pilot type further adds precision, guiding the bolt into position smoothly. This bolt is part of the 9.8 property class, offering strong tensile strength for demanding tasks. The integrated pilot and washer design streamlines the installation process, making it an ideal component in the automotive sector where efficiency and reliability are key.

Perfect for mechanical assemblies, this bolt’s versatile design adapts to various scenarios without compromising on quality. Explore the full range of Facil products to find the right fit for your project needs.
