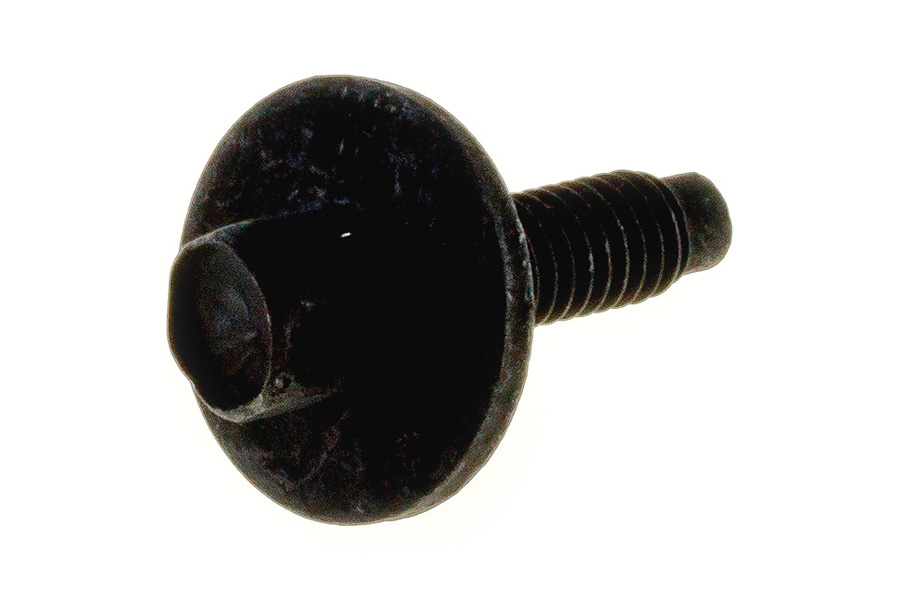

AY00327ADD - M6-1.0x20 IND HEX HD SEMSM/S W/CNCL WSHR PILOT PT PC

M6-1.0x20 IND HEX HD SEMSM/S W/CNCL WSHR PILOT PT PC

Part № AY00327ADD

Coating S307
headtype Hexagon
threadsize M6
totallength 22.3
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

1800
HasPilot

1
HasWasher

1
HeadHeight

4
HeadType

Hexagon
Length

20
LockingType

Undefined
PilotType

Dog
PropertyClass

SteelPC9_8
ThreadLength

18
ThreadPitch

1
ThreadSize

M6
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

8
ToolType

ExternalHexagon
TotalLength

22.3
WasherDiam

19.4
WasherHeight

1.8
WasherType

Conical
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AY00327ADD

The bolt with part number AY00327ADD is designed for a range of industrial applications. Provided by DTNA, Tiers, it offers a reliable solution for your fastening needs. With a box quantity of 1800, it ensures ample supply for your projects.

This bolt features a hexagonal head, allowing for easy installation with the appropriate tool. The inclusion of a conical washer enhances its fastening strength, ensuring a secure fit even under vibration. Its dog point pilot type ensures precise alignment and ease during assembly.

The M6 thread size with a thread pitch of 1.0 ensures compatibility with a variety of components, making it an excellent choice for industries requiring strong and dependable connections. The total length of this bolt is 22.3 mm, and it is crafted from steel with a property class of 9.8, providing durability and performance in demanding environments.

Designed for streamlined performance, this bolt is ideal for scenarios where rapid and reliable fastening is crucial. Whether you are overseeing a small-scale project or managing a larger operation, its robust construction and ready availability make it a practical choice.

Whether used in automotive or other industrial sectors, this bolt offers the quality and reliability expected from top-tier manufacturers. Explore its capabilities in meeting your specific project requirements today.
