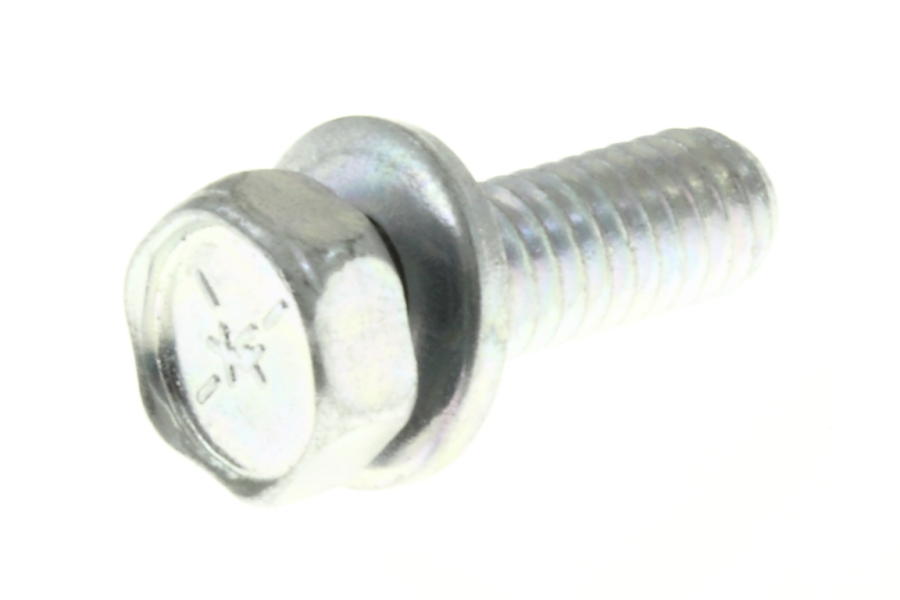

AY00533ADD - 5/16-18x1" HEX SEMS MACH SCR GR5.1 ZN5A

5/16-18x1" HEX SEMS MACH SCR GR5.1 ZN5A

Part № AY00533ADD

Coating ZN5A
headtype Hexagon
threadsize 5/16
totallength 24.4
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

1300
HasWasher

1
HeadHeight

5.6
HeadType

Hexagon
Length

24.4
LockingType

Undefined
PilotType

Undefined
PropertyClass

SteelGrade05
ThreadLength

22.3
ThreadPitch

18
ThreadSize

5/16
ThreadSpecial

Standard
ThreadType

Unified
ToolSize

0.5
ToolType

ExternalHexagon
TotalLength

24.4
WasherDiam

16
WasherHeight

2
WasherType

Conical
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AY00533ADD

The 5/16-18x1" HEX SEMS MACH SCR GR5.1 ZN5A bolt, part number AY00533ADD, is a versatile fastener designed for a wide range of applications. Sourced from Navistar, this bolt is crafted from high-strength steel, ensuring durability and reliability even under strenuous conditions. It features a unified thread type with a 5/16 thread size and 18 thread pitch, providing a robust connection that maintains its integrity under repeated movement or vibration.

Equipped with a hexagon head and conical washer, this bolt ensures a secure fit while preventing loosening during use. The washer adds an extra layer of security, distributing the load evenly and enhancing performance. With a total length of 24.4mm and a head height of 5.6mm, it suits various mechanical needs, making it an essential component in automotive and industrial applications.

This bolt’s Grade 5.1 classification means it offers enhanced tensile strength, suitable for demanding environments. Zinc-coated for corrosion resistance, it is ideal for longevity in adverse weather or high-humidity conditions. Available in a box quantity of 1300, the AY00533ADD bolt offers consistent quality, making it a reliable choice for both large-scale and small-scale projects. Its thoughtful design and sturdy construction underline its extensive utility, ensuring dependable connections.
