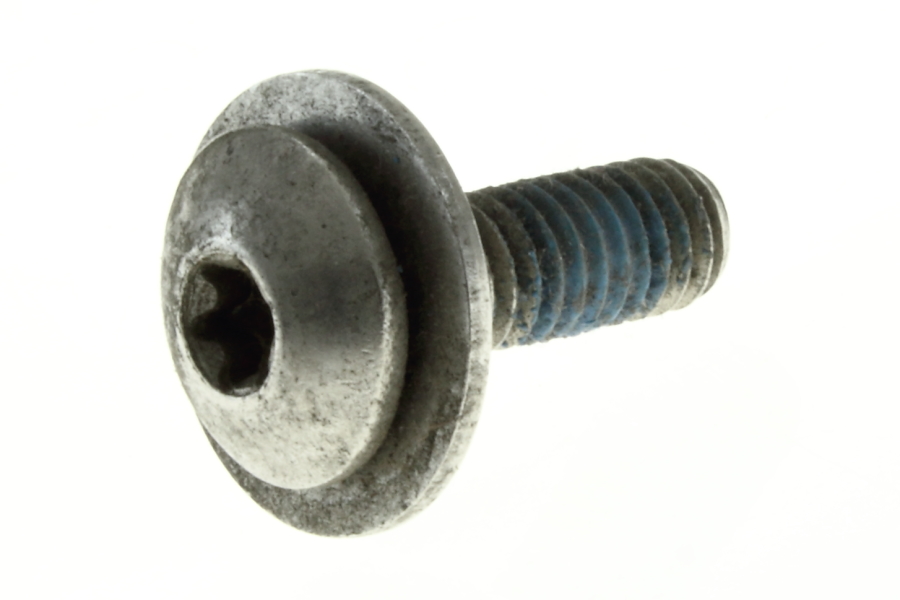

5/16-18x1" TRUSS LCK SEMS 6PT-LB NYL PTCH SSTL

Part № AY00534ADD

None

Pan

5/16

Request quantity

Technical Details

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity	750
HasLock	1
HasWasher	1
HeadDiam	17.3
HeadHeight	4.4
HeadType	Pan
Length	25
LockingType	NylonPatch
PilotType	Undefined
PropertyClass	StainlessSteel
ThreadLength	20.6
ThreadPitch	18
ThreadSize	5/16
ThreadSpecial	Standard
ThreadType	Unified
ToolSize	40
ToolType	InternalTorx
TotalLength	25
WasherDiam	22.3
WasherHeight	1.7
WasherType	Flat
Coating	View details

Features

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AY00534ADD

Our 5/16-18x1" Truss Lock SEMS 6PT-LB Nylon Patch Stainless Steel bolt, part number AY00534ADD, offers a reliable solution for your fastening needs. Designed for durability, it features a robust stainless steel composition. This bolt is equipped with a nylon patch locking mechanism, ensuring it remains secure even in situations with frequent movement or vibration.

With a thread size of 5/16 and a thread pitch of 18, it provides precise compatibility with various applications. The pan head type, combined with a total length of 25 mm, makes it suitable for a range of mechanical assemblies, delivering a strong and consistent hold. Crafted with an internal Torx tool type, it allows for a secure and easy installation process.

Sourced from Navistar, a trusted name in the industry, this bolt guarantees quality and performance. Available in box quantities of 750, it ensures you have an ample supply for both immediate and future projects. Whether you're working in the automotive sector or any other field requiring dependable fastening solutions, this bolt offers the reliability and strength you need.

Beyond its technical specifications, this bolt is designed to minimize installation time and maximize efficiency. The integrated washer and lock ensure a streamlined assembly process. Its corrosion-resistant stainless steel finish is well-suited for demanding environments, offering long-lasting performance. Trust this essential component to maintain integrity and strength in every application.
