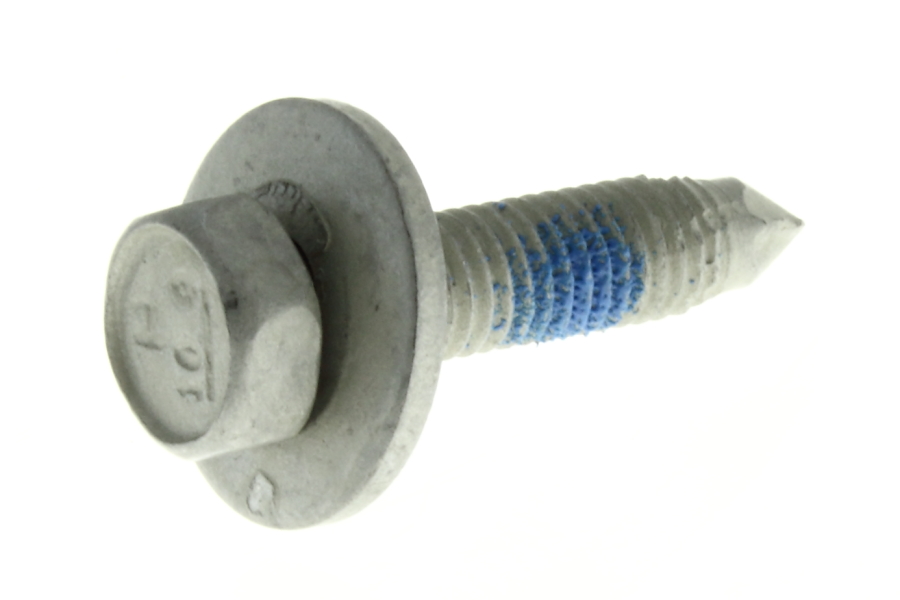

AY00539ADD - M8x1.25-50mm HEX SEMS w/CNP PNT-F PC10.9 PHC

M8x1.25-50mm HEX SEMS w/CNP PNT-F PC10.9 PHC

Part № AY00539ADD

Coating PHC B2
headtype Hexagon
threadsize M8
totallength 35
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

850
HasLock

1
HasPaintClearing

1
HasPilot

1
HasWasher

1
HeadHeight

5.6
HeadType

Hexagon
Length

30
LockingType

NylonPatch
PilotType

Cone
PropertyClass

SteelPC10_9
ThreadLength

24.1
ThreadPitch

1,25
ThreadSize

M8
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

13
ToolType

ExternalHexagon
TotalLength

35
WasherDiam

22.3
WasherHeight

2.5
WasherType

Conical
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AY00539ADD

The M8x1.25-50mm HEX SEMS bolt with part number AY00539ADD is a dependable choice for various mechanical applications. Designed with precision, it features a hexagon head and comes with a nylon patch locking system, ensuring a secure fit even under vibration. Manufactured by Navistar, this bolt offers durability and consistent performance.

With a thread size of M8 and a thread pitch of 1.25, this bolt is designed to easily pair with compatible nuts, providing a robust connection. The total length ensures a perfect fit for your specific needs, while the inclusion of a conical washer aids in maintaining stability.

Available in a box quantity of 850, this component is ideal for both large-scale industrial use and smaller projects. The integrated paint-clearing feature further enhances its functionality, offering a neat and efficient assembly process. Sourced from trusted distributors, this component is engineered for excellence, ensuring it meets OEM specifications effortlessly.

Precision in fastening is key to maintaining the integrity of your construction or assembly project. This bolt has been crafted with attention to detail, incorporating a pilot cone for easy alignment and installation. Its Steel Property Class 10.9 rating confirms its high strength and suitability for demanding applications, keeping your assemblies secure and reliable.
