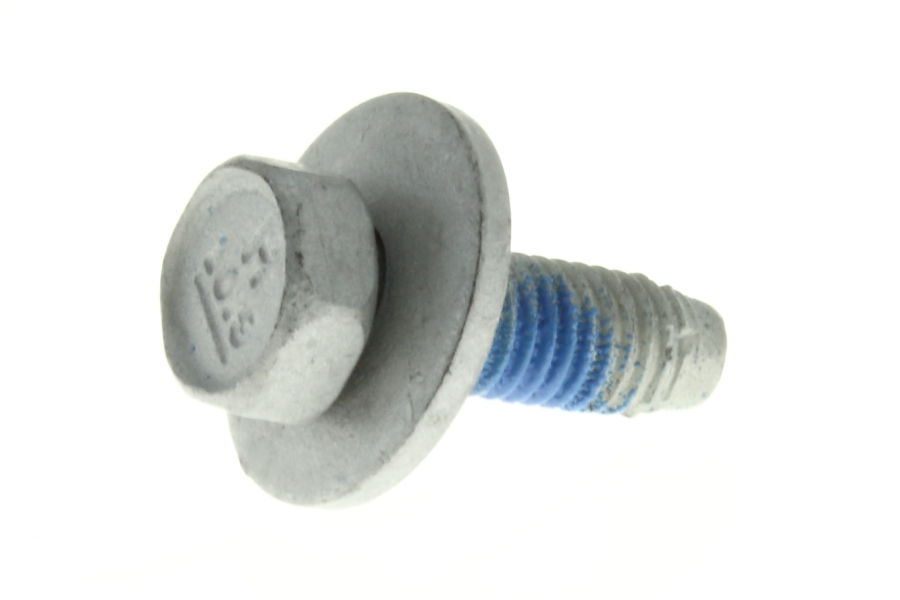

AY00544ADD - M8x1.25-35mm HEX SEMS LCK BLT PNT-F PC10.9 PHC

M8x1.25-35mm HEX SEMS LCK BLT PNT-F PC10.9 PHC

Part № AY00544ADD

Coating PHC B2
headtype Hexagon
threadsize M8
totallength 25
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

1000
HasLock

1
HasPaintClearing

1
HasWasher

1
HeadHeight

5.6
HeadType

Hexagon
Length

25
LockingType

NylonPatch
PilotType

Undefined
PropertyClass

SteelPC10_9
ThreadLength

19.3
ThreadPitch

1,25
ThreadSize

M8
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

13
ToolType

ExternalHexagon
TotalLength

25
WasherDiam

22.3
WasherHeight

2.5
WasherType

Conical
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AY00544ADD

The M8x1.25-35mm HEX SEMS LCK BLT PNT-F PC10.9 PHC, with part number AY00544ADD, is an essential component designed for reliability and strength. This bolt, sourced from Navistar, is crafted to meet demanding standards, with a sturdy SteelPC10.9 construction ensuring durability. Its hexagon head provides ease of installation, while the integrated conical washer enhances the fastening grip.

The bolt features a thread size of M8 and a thread pitch of 1.25mm, guaranteeing precise compatibility with corresponding nuts and components. This is vital for ensuring a secure fit, especially in applications involving repeated movement or vibration. The 19.3mm thread length, paired with a nylon patch locking type, adds additional security against loosening.

This bolt includes features like paint clearing, which ensure effective attachment after surface treatments, making it suitable for tasks requiring a clean finish. Each box contains a quantity of 1000 bolts, making it a cost-effective choice for large-scale projects. Whether used in automotive or industrial settings, this external hexagon bolt offers an optimal solution for anyone seeking robust and reliable fasteners.

Designed for user-friendly application, its external hexagon tool type and 13mm tool size mean it fits most standard equipment, simplifying maintenance and assembly processes. The bolt's efficient design reduces downtime, which is crucial for maintaining productivity across various industries.
