AY00545ADD - M6x1-25mm HEX SEMS LCK BLT PNT-F PC10.9 PHC

M6x1-25mm HEX SEMS LCK BLT PNT-F PC10.9 PHC

Part № AY00545ADD

Coating PHC B2
headtype Hexagon
threadsize M6
totallength 25
Request quantity

Technical details

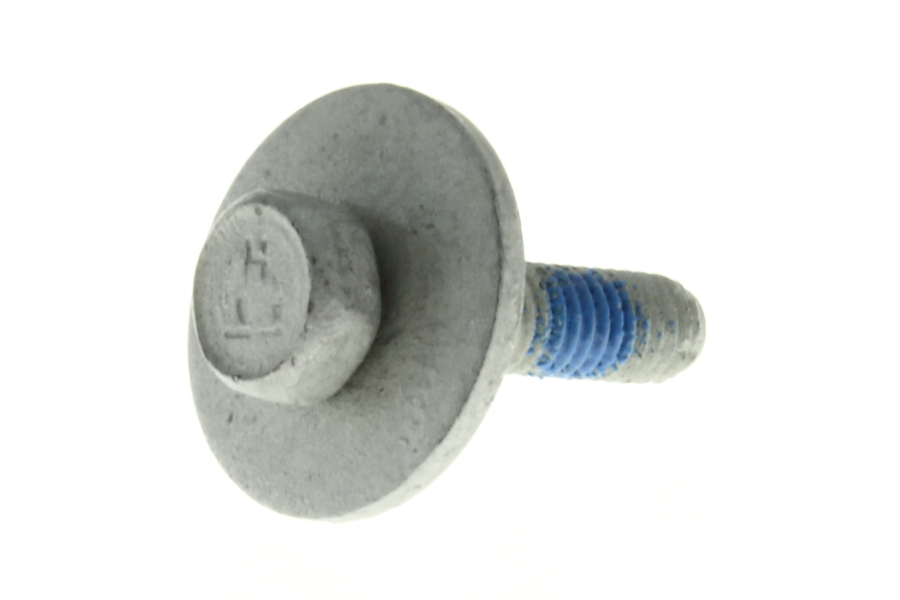

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

1300
HasLock

1
HasPaintClearing

1
HasWasher

1
HeadHeight

4.4
HeadType

Hexagon
Length

25
LockingType

NylonPatch
PilotType

Undefined
PropertyClass

SteelPC10_9
ThreadLength

21.3
ThreadPitch

1
ThreadSize

M6
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

10
ToolType

ExternalHexagon
TotalLength

25
WasherDiam

22.3
WasherHeight

2
WasherType

Conical
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AY00545ADD

Explore the M6x1-25mm HEX SEMS Lock Bolt with part number AY00545ADD, tailored for projects requiring durability and precision. Engineered to meet high-performance standards, this bolt is a vital component for various applications.

Designed with a hexagon head for easy installation, it features a nylon patch for secure locking, ensuring stability in conditions susceptible to vibration. With a thread size of M6 and a thread pitch of 1, this bolt fits perfectly in your fastening requirements. The total length of 25mm, complemented by a head height of 4.4mm, provides a streamlined profile for efficient assembly.

Equipped with a conical washer, it offers added security, reducing the risk of loosening over time. The steel property class 10.9 ensures exceptional strength. With a box containing 1300 bolts, it is ideal for both large-scale projects and smaller operations, making it a practical choice for mechanics, engineers, and DIY enthusiasts.

This bolt includes paint clearing capabilities, ensuring a clean application and adherence to high standards of finish quality in aesthetic-sensitive projects. The metric thread type, combined with the external hexagon tool type for easy installation, makes this bolt a versatile choice for a wide range of mechanical and assembly applications.
