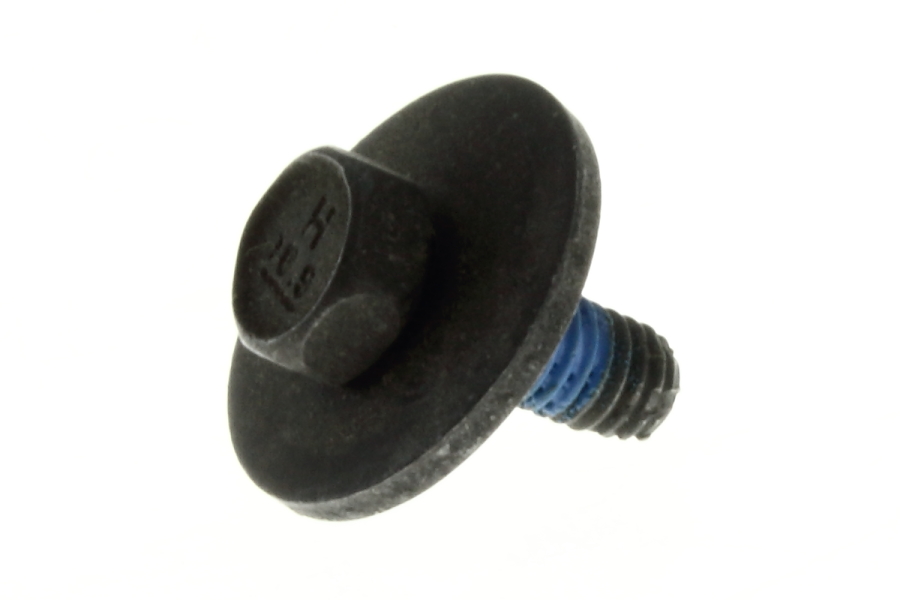

AY00546ADD - M6x1-16mm HEX SEMS LCK BLT PNT-F PC10.9 PHC

M6x1-16mm HEX SEMS LCK BLT PNT-F PC10.9 PHC

Part № AY00546ADD

Coating PHC B2
headtype Hexagon
threadsize M6
totallength 16
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

1500
HasLock

1
HasPaintClearing

1
HasWasher

1
HeadHeight

4.4
HeadType

Hexagon
Length

16
LockingType

NylonPatch
PilotType

Undefined
PropertyClass

SteelPC10_9
ThreadLength

12.3
ThreadPitch

1
ThreadSize

M6
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

10
ToolType

ExternalHexagon
TotalLength

16
WasherDiam

22.3
WasherHeight

2
WasherType

Conical
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AY00546ADD

The M6x1-16mm HEX SEMS LCK BLT PNT-F PC10.9 PHC, part number AY00546ADD, is a reliable solution for fastening needs across various applications. Manufactured by Navistar, this bolt offers robust connections, ensuring durability and performance.

Featuring a hexagon head type, it comes with a thread size of M6 and a thread pitch of 1, providing precise alignment and secure fastening. The nylon patch locking type enhances its holding power, making it suitable for use in conditions with movement or vibration. This bolt also includes a built-in washer for added stability and has paint-clearing capabilities.

Designed for use with a 10 mm tool size in external hexagon applications, its versatility is evident. Each box contains 1,500 units, ensuring ample supply for larger projects. Constructed to comply with the SteelPC10_9 property class, this bolt guarantees strength and resilience.

Accompanied by a conical washer with a diameter of 22.3 mm and a height of 2 mm, this bolt assembly contributes to effective load distribution, minimizing potential damage to surfaces. The bolt's total length of 16 mm and a thread length of 12.3 mm ensure a precise fit for many standard applications.

A trusted choice from Navistar, this bolt is well-suited for the automotive sector, offering quick and efficient access to essential components. Order today and secure quality and reliability needed for demanding applications.
