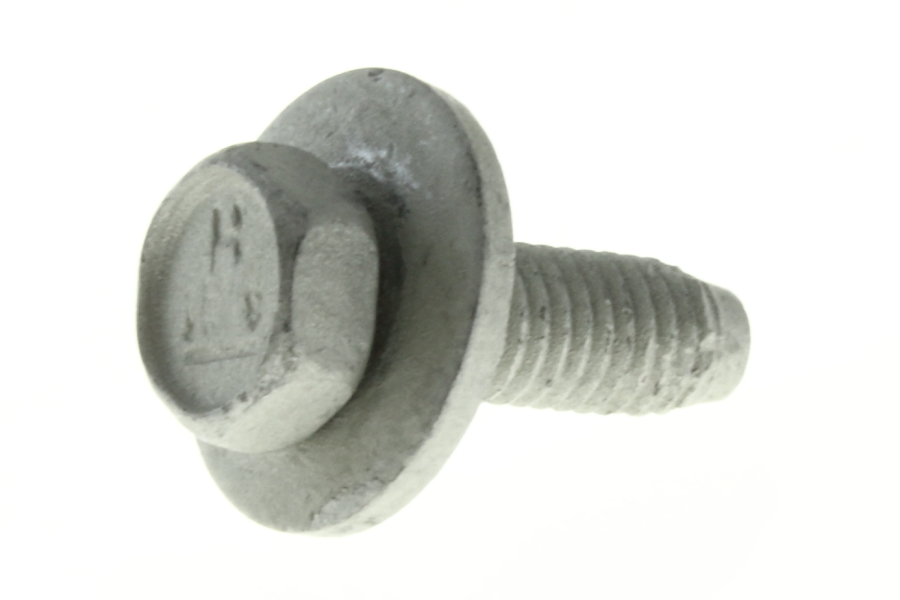

AY00547ADD - M8x1.25-25mm HEX SEMS BLT PNT-F PC10.9 ZACLR

M8x1.25-25mm HEX SEMS BLT PNT-F PC10.9 ZACLR

Part № AY00547ADD

Coating ZACLR
headtype Hexagon
threadsize M8
totallength 25
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

1000
HasPaintClearing

1
HasWasher

1
HeadHeight

5.6
HeadType

Hexagon
Length

25
LockingType

Undefined
PilotType

Undefined
PropertyClass

SteelPC10_9
ThreadLength

19.3
ThreadPitch

1,25
ThreadSize

M8
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

13
ToolType

ExternalHexagon
TotalLength

25
WasherDiam

22.3
WasherHeight

2.5
WasherType

Conical
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AY00547ADD

The M8x1.25-25mm HEX SEMS BLT PNT-F, part number AY00547ADD, provides a reliable solution for various fastening applications. Sourced from Navistar, this bolt is designed for robustness and precision. With a hexagon head, it ensures straightforward installation and removal using standard tools. The conical washer enhances stability and distributes load evenly, making it suitable for dynamic environments.

This bolt features a precise thread size of M8 and a thread pitch of 1.25 mm, allowing for a secure fit in compatible applications. With a length of 25 mm, it offers sufficient reach for firmly securing components. Constructed from high-grade SteelPC10.9, it combines durability and resilience, suitable for demanding conditions.

Incorporating paint-clearing capabilities, this bolt maintains its integrity and performance. Packaged in a box quantity of 1000, it meets the requirements of large-scale projects while ensuring a consistent supply. Whether used in automotive or industrial settings, this metric-threaded bolt is optimized for performance and reliability.

Its external hexagon design, paired with a tool size of 13, ensures compatibility with common hardware, reducing the need for specialized tools. This facilitates efficiency and convenience during assembly and maintenance processes. Additionally, the conical washer supports a wide range of uses, contributing to the bolt's versatility in securing different materials.
