AY00550ADD - 5/16-18x.625" HEX SEMS LCKSCR GR5.1 ZN5A

5/16-18x.625" HEX SEMS LCKSCR GR5.1 ZN5A

Part № AY00550ADD

Coating ZN5A
headtype Hexagon
threadsize 5/16
totallength 15.6
Request quantity

Technical details

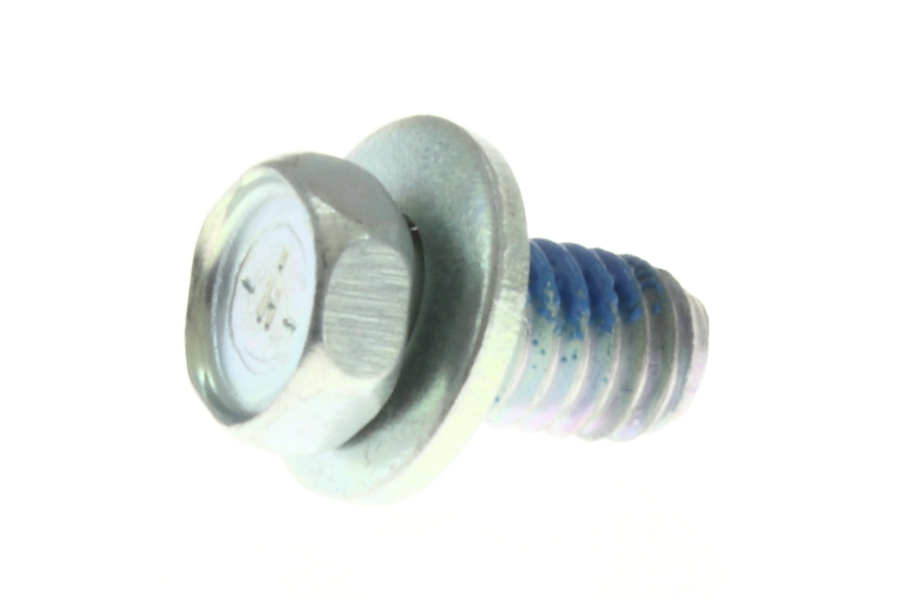

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

250
HasLock

1
HasWasher

1
HeadHeight

4.6
HeadType

Hexagon
Length

15.6
LockingType

NylonPatch
PilotType

Undefined
PropertyClass

SteelGrade05
ThreadLength

13.6
ThreadPitch

18
ThreadSize

5/16
ThreadSpecial

Standard
ThreadType

Unified
ToolSize

0.4325
ToolType

ExternalHexagon
TotalLength

15.6
WasherDiam

16
WasherHeight

2
WasherType

Conical
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AY00550ADD

The "5/16-18x.625" HEX SEMS LCKSCR GR5.1 ZN5A" bolt, part number AY00550ADD, is an essential component for securing machinery and assemblies with precision. This versatile bolt features a hexagon head and is crafted to meet high standards, offering reliability for various applications. Designed by Navistar, its integrated lock and washer enhance grip, ensuring stability even in conditions subject to vibration.

Built with a thread size of 5/16 inches and a thread pitch of 18, this bolt provides a secure and seamless fit. The steel construction, graded at 5.1, ensures durability and resistance to wear, making it suitable for demanding environments. Coated with ZN5A, it offers additional protection against corrosion, extending its lifespan significantly.

Each box contains 250 bolts, offering a comprehensive solution for bulk installations. Whether you are dealing with complex automotive projects or precise engineering tasks, this bolt simplifies the process, maintaining a solid connection between parts. Trust the quality of Navistar for reliable performance.

Incorporating the NylonPatch locking type, these bolts deliver additional security by preventing loosening over time. The conical washer design further complements the bolt's functionality, distributing pressure evenly to avoid damage to the surfaces connected. This thoughtful design ensures that each bolt meets the precise demands of your projects, making them a dependable choice for engineers and contractors alike.
