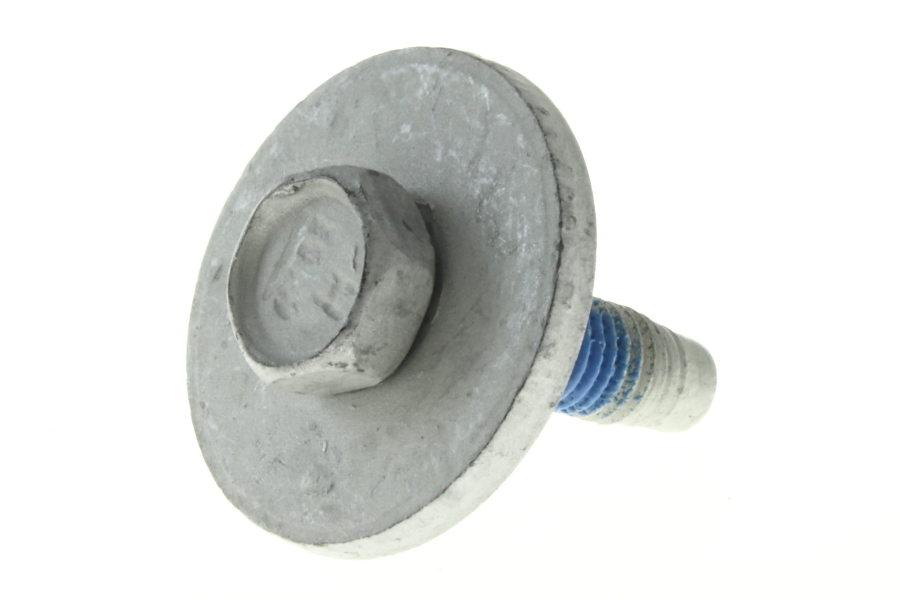

AY00555ADD - M8x1.25-30mm HX LCK SEMS w/PIL PC10.9 ZACLR

M8x1.25-30mm HX LCK SEMS w/PIL PC10.9 ZACLR

Part № AY00555ADD

Coating ZACLR
headtype Hexagon
threadsize M8
totallength 30
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

500
HasLock

1
HasPilot

1
HasWasher

1
HeadHeight

5.6
HeadType

Hexagon
Length

21.2
LockingType

NylonPatch
PilotType

Mathread
PropertyClass

SteelPC10_9
ThreadLength

17.7
ThreadPitch

1,25
ThreadSize

M8
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

13
ToolType

ExternalHexagon
TotalLength

30
WasherDiam

32.5
WasherHeight

3.5
WasherType

Flat
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AY00555ADD

The M8x1.25-30mm HX LCK SEMS w/PIL PC10.9 ZACLR bolt, part number AY00555ADD, is a reliable choice for robust fastening solutions in demanding environments. Manufactured by Navistar, this bolt is engineered to meet high standards of strength and durability with a property class of SteelPC10_9. Each box contains 500 units, ensuring you have an ample supply for extensive projects.

Designed with a hexagon head, this bolt makes for easy application with an external hexagon tool size of 13. Its 1.25 thread pitch and M8 thread size provide a secure fit, ideal for automotive and industrial applications. The integrated NylonPatch locking type enhances its resistance to vibration and loosening, making it perfect for dynamic settings. With a total length of 30mm and a head height of 5.6mm, it offers a precise fit that aligns with OEM requirements.

The included flat washer and mathread pilot add to the versatility and reliability of this component. Whether you are maintaining equipment or assembling new machinery, the combination of features in this bolt promises dependability. Explore the Facil webshop to secure this essential component for your needs.

The zinc coating on this bolt adds an extra layer of corrosion resistance, ensuring longevity even in harsh environments. This feature helps maintain structural integrity over time, reducing maintenance needs and costs. With such comprehensive benefits, the AY00555ADD bolt is an investment in quality and performance for your assembly projects.
