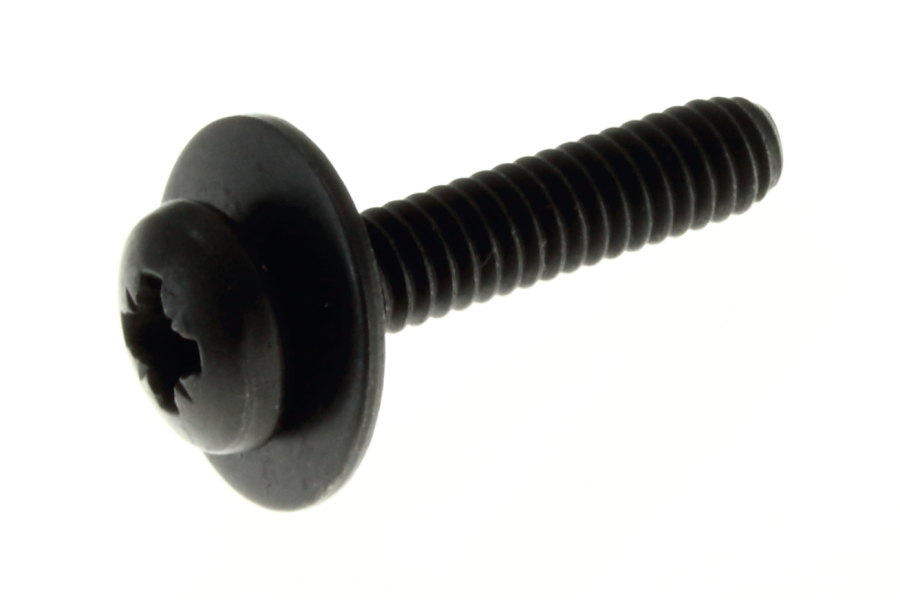

AY00569ADD - 1/4-20x1.25" PAN SEMS BOLTX-RCS SSTL 410 BLO

1/4-20x1.25" PAN SEMS BOLTX-RCS SSTL 410 BLO

Part № AY00569ADD

Coating BLO
headtype Pan
threadsize 1/4
totallength 31.8
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

1400
HasWasher

1
HeadDiam

12.3
HeadHeight

4.3
HeadType

Pan
Length

31.8
LockingType

Undefined
PilotType

Undefined
PropertyClass

StainlessSteel
ThreadLength

30.5
ThreadPitch

20
ThreadSize

1/4
ThreadSpecial

Standard
ThreadType

Unified
ToolType

CrossRecess
TotalLength

31.8
WasherDiam

19.2
WasherHeight

1.2
WasherType

Conical
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AY00569ADD

The 1/4-20x1.25" PAN SEMS BOLTX-RCS SSTL 410 BLO, under part number AY00569ADD, offers reliability for those needing durable and precise fastening solutions. Manufactured by Navistar, this bolt aligns with the standards of professionals and DIY enthusiasts alike, combining quality materials with excellent craftsmanship.

Packaged in a box quantity of 1400, it suits bulk applications, ensuring ample supply for extensive projects. The pan head type and cross recess tool type facilitate easy handling and secure fastening. Made from robust stainless steel 410, it provides excellent corrosion resistance, suitable for diverse environments.

This bolt features a thread size of 1/4" and a thread pitch of 20, ensuring compatibility with a variety of nuts and assemblies. The integrated washer with a conical design enhances its holding strength, securing a stable connection.

Its total length of 31.8 mm and thread length of 30.5 mm make it versatile for various installation needs, applicable in automotive assembly lines and structural repairs.

For applications requiring dependable fastening, from automotive to industrial settings, the AY00569ADD bolt stands for quality and functionality.
