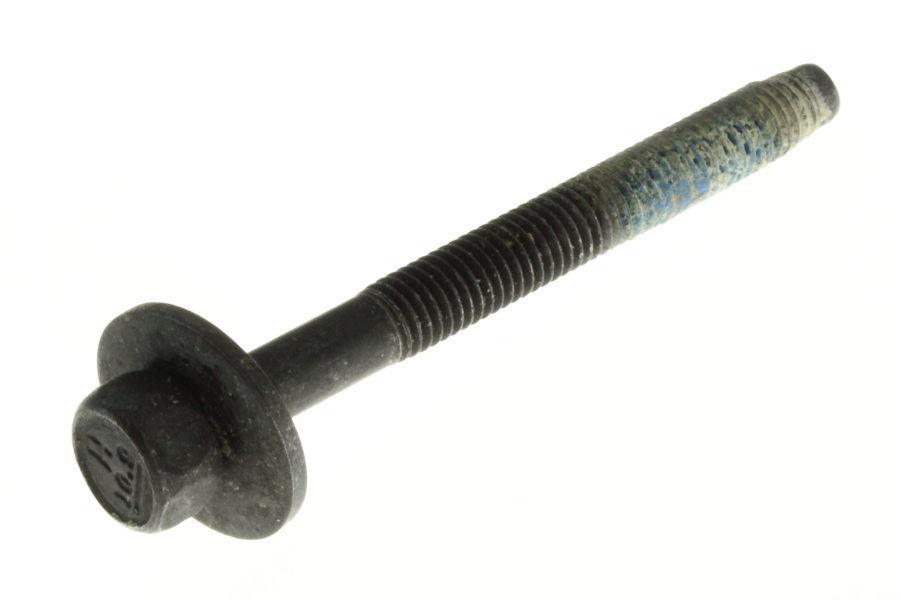

AY00571ADD - M8x1.25-81mm HX LOCK SEMS w/MAT-P PC10.9 PHC

M8x1.25-81mm HX LOCK SEMS w/MAT-P PC10.9 PHC

Part № AY00571ADD

Coating PHC B2
headtype Hexagon
threadsize M8
totallength 81.1
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

300
Comment

MATpoint
HasLock

1
HasPilot

1
HasWasher

1
HeadHeight

7.6
HeadType

Hexagon
Length

74.4
LockingType

NylonPatch
PilotType

Mathread
PropertyClass

SteelPC10_9
ThreadLength

29.7
ThreadPitch

1,25
ThreadSize

M8
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

13
ToolType

ExternalHexagon
TotalLength

81.1
WasherDiam

23.8
WasherHeight

2.4
WasherType

Conical
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AY00571ADD

Discover the AY00571ADD, a high-performance bolt designed for robust applications. With its hexagon head and a total length of 81.1mm, this bolt ensures a secure fit across various assembly tasks. It features a thread size of M8 and a thread pitch of 1.25, making it ideal for precision work where exact measurements are essential.

Manufactured by Navistar and crafted with SteelPC10.9, this bolt provides outstanding strength and durability, maintaining integrity even under stress. Additionally, it incorporates a NylonPatch locking type, enhancing stability and preventing loosening due to vibration. The conical washer with a diameter of 23.8mm and a height of 2.4mm adds to its efficiency by distributing load evenly.

This product is available in a box quantity of 300, catering to large-scale operations with ease. Perfect for the automotive sector's demanding needs, this bolt is a reliable choice for ensuring lasting connections. With compatibility for external hexagon tools and MATpoint features, it streamlines assembly processes, reducing downtime and increasing productivity.

Incorporating a Mathread pilot type, the AY00571ADD bolt aligns seamlessly with mating components, ensuring consistent engagement and optimal force distribution. This meticulous design detail minimizes the chances of misalignment, reducing wear and tear on mechanical parts. Choose this bolt for efficiency and reliability in your assembly projects.
