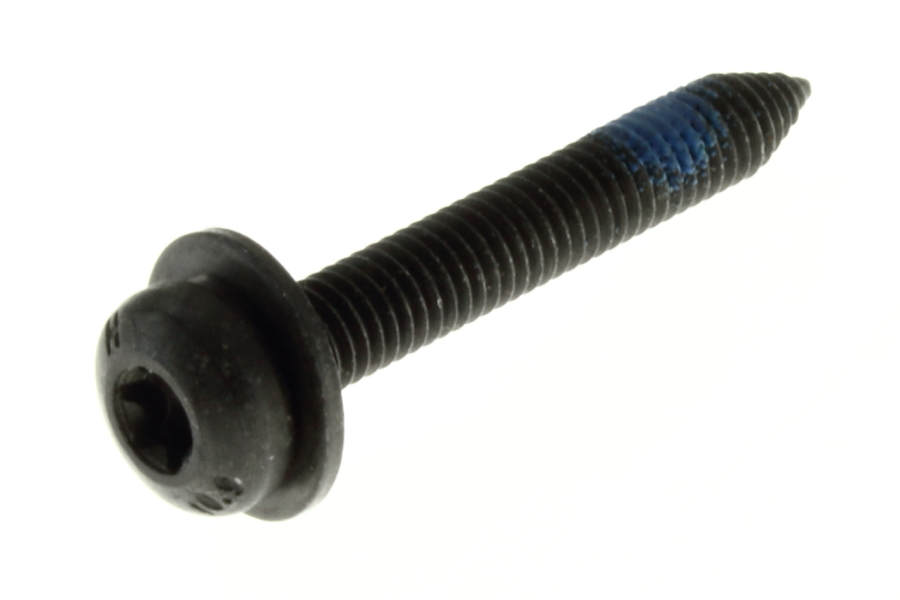

AY00572ADD - M6x1-42mm PAN LOCK SEMS w/CA PNT PC10.9 ZNi-B2

M6x1-42mm PAN LOCK SEMS w/CA PNT PC10.9 ZNi-B2

Part № AY00572ADD

Coating ZNi-B2
headtype Pan
threadsize M6
totallength 42
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

1300
HasLock

1
HasWasher

1
HeadDiam

12
HeadHeight

4.6
HeadType

Pan
Length

42
LockingType

NylonPatch
PilotType

Undefined
PropertyClass

SteelPC10_9
ThreadLength

40.5
ThreadPitch

1
ThreadSize

M6
ThreadSpecial

TaptiteCA
ThreadType

Metric
ToolSize

30
ToolType

InternalTorx
TotalLength

42
WasherDiam

14.8
WasherHeight

1.5
WasherType

Flat
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AY00572ADD

The M6x1-42mm PAN LOCK SEMS, part number AY00572ADD, is a versatile and reliable bolt designed for a range of applications. Crafted by Navistar, this bolt ensures a secure fit with its metric thread type, offering a thread size of M6 and a precise thread pitch of 1. Measuring a total length of 42mm, it is ideal for ensuring strong connections in mechanical assemblies.

This bolt features a pan head design, providing a sleek look while maintaining robust functionality. The inclusion of a nylon patch enhances its locking capability, ensuring stability even under conditions of vibration or repeated movement. It incorporates an internal Torx tool type for easy installation and removal, contributing to its user-friendly design.

With a box quantity of 1300, these bolts are an excellent choice for large projects, reducing the need for frequent reordering. The flat washer and the high-grade Steel PC10.9 property class add to its durability and performance. Whether used in automotive applications or other industrial settings, this bolt from Navistar stands as a reliable component for maintaining structural integrity.

The bolt's construction includes a 12mm diameter head, optimizing the distribution of force when tightened. The washer diameter of 14.8mm and a height of 1.5mm further enhance its load-bearing capability. This design ensures optimal tension distribution, reducing the risk of loosening over time and maintaining a tight hold between components.
