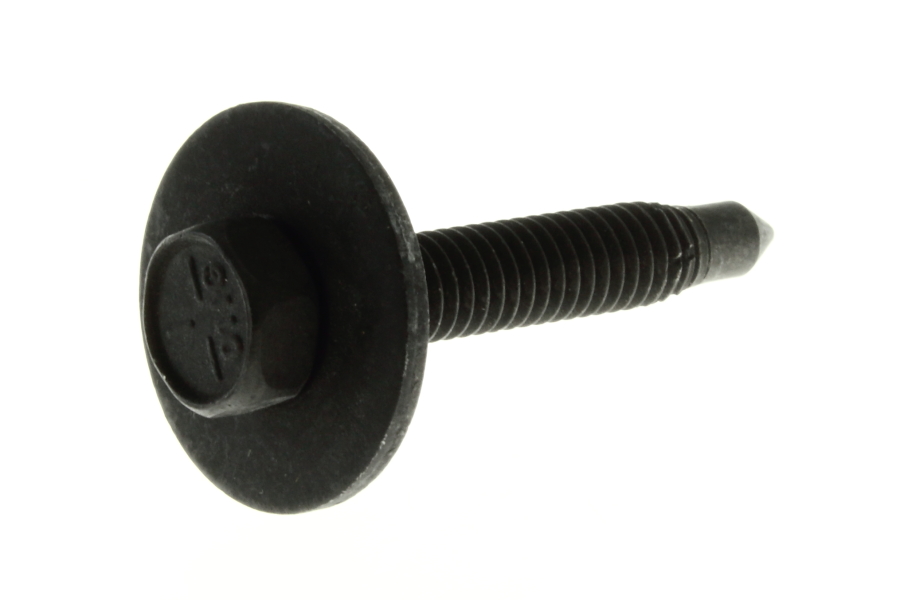

AY00592ADD - 5/16-18x1.88" HEX SEMS CNPFL WSH GR5 PHC

5/16-18x1.88" HEX SEMS CNPFL WSH GR5 PHC

Part № AY00592ADD

Coating PHC Z2
headtype Hexagon
threadsize 5/16
totallength 47.8
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

450
HasPaintClearing

1
HasPilot

1
HasWasher

1
HeadHeight

5.6
HeadType

Hexagon
Length

40.3
LockingType

Undefined
PilotType

Cone
PropertyClass

SteelGrade05
ThreadLength

32.4
ThreadPitch

18
ThreadSize

5/16
ThreadSpecial

Standard
ThreadType

Unified
ToolSize

0.5
ToolType

ExternalHexagon
TotalLength

47.8
WasherDiam

28.2
WasherHeight

2.5
WasherType

Flat
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AY00592ADD

The 5/16-18x1.88" HEX SEMS CNPFL WSH GR5 PHC bolt, part number AY00592ADD, is a reliable choice for various applications, particularly in the automotive sector. Manufactured by Navistar, this bolt ensures quality and durability. It features a hexagon head and an integrated washer, providing a secure fit and ease of use.

This bolt includes a thread size of 5/16 and a thread pitch of 18, offering precision in fastening tasks. With a total length of 47.8 mm and a head height of 5.6 mm, it is suitable for scenarios requiring robust connections. The unified thread type complements its standard compatibility with various industrial specifications.

The bolt's cone pilot type adds to its efficiency, guiding it into place seamlessly. With a box quantity of 450, it is an ideal option for bulk purchases, ensuring you have ample supply for ongoing projects. The included washer, featuring a diameter of 28.2 mm and a flat type, enhances stability and minimizes the risk of loosening under vibration.

Sourced from Navistar, this bolt reflects a commitment to high standards, providing reliability in every use.

For those in need of fasteners that maintain strength in dynamic or repetitive conditions, this bolt's property class of SteelGrade05 delivers robust performance. Its paint clearing feature ensures a clean application in assemblies where aesthetic or functional precision is essential. This combination of features makes it an asset in both repair and manufacturing environments.
