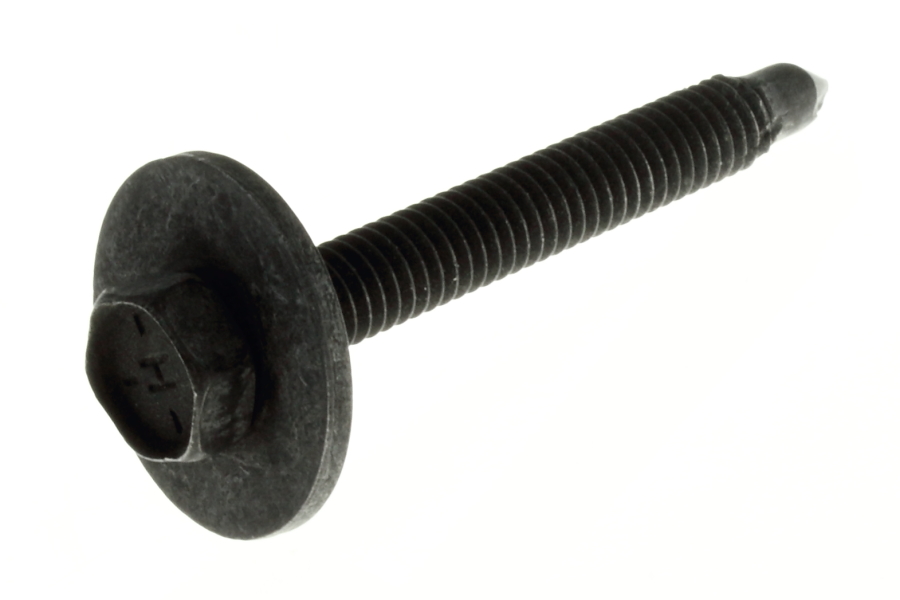

AY00593ADD - 5/16-18x2.5" HEX SEMS CNP FL WSH GR5 PHC

5/16-18x2.5" HEX SEMS CNP FL WSH GR5 PHC

Part № AY00593ADD

Coating PHC Z2
headtype Hexagon
threadsize 5/16
totallength 63.5
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

400
HasPaintClearing

1
HasPilot

1
HasWasher

1
HeadHeight

5.6
HeadType

Hexagon
Length

55.5
LockingType

Undefined
PilotType

Cone
PropertyClass

SteelGrade05
ThreadLength

48.3
ThreadPitch

18
ThreadSize

5/16
ThreadSpecial

Standard
ThreadType

Unified
ToolSize

0.5
ToolType

ExternalHexagon
TotalLength

63.5
WasherDiam

28.2
WasherHeight

2.5
WasherType

Flat
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AY00593ADD

The "5/16-18x2.5" HEX SEMS CNP FL WSH GR5 PHC" bolt, part number AY00593ADD, is a robust component ideal for a variety of applications. Sourced from Navistar, this bolt integrates efficiency and durability, making it perfect for automotive needs. With a box quantity of 400, it’s designed to meet bulk demands, ensuring you never run short during critical projects.

Featuring a hexagon head type, the bolt provides a reliable grip for tightening. The cone pilot ensures precise alignment during installation. Measuring a total length of 63.5 mm, it fits seamlessly into systems requiring specific alignments. Its 5/16 thread size and a thread pitch of 18 form a unified threading system that offers a tight, secure fit. Constructed from Steel Grade 5, its material composition ensures strength and longevity, standing up to rigorous conditions.

Additionally, this bolt includes a flat washer, enhancing surface grip and distributing pressure evenly across joint connections. Its external hexagon tool type allows for easy and secure fastening. Whether you're reinforcing mechanical connections or assembling components, this well-designed bolt offers both reliability and ease of use.

This bolt is equipped with a paint clearing feature, ensuring a consistently clean connection free of debris. The head height of 5.6 mm further contributes to its compatibility in diverse installations, while the thread length of 48.3 mm ensures ample engagement, making this a versatile option for different mechanical settings.
