AY00594ADD - 5/16-18x1.125" HEX SEMS w/PIL PNT-F GR5 PHC

5/16-18x1.125" HEX SEMS w/PIL PNT-F GR5 PHC

Part № AY00594ADD

Coating PHC B2
headtype Hexagon
threadsize 5/16
totallength 28.6
Request quantity

Technical details

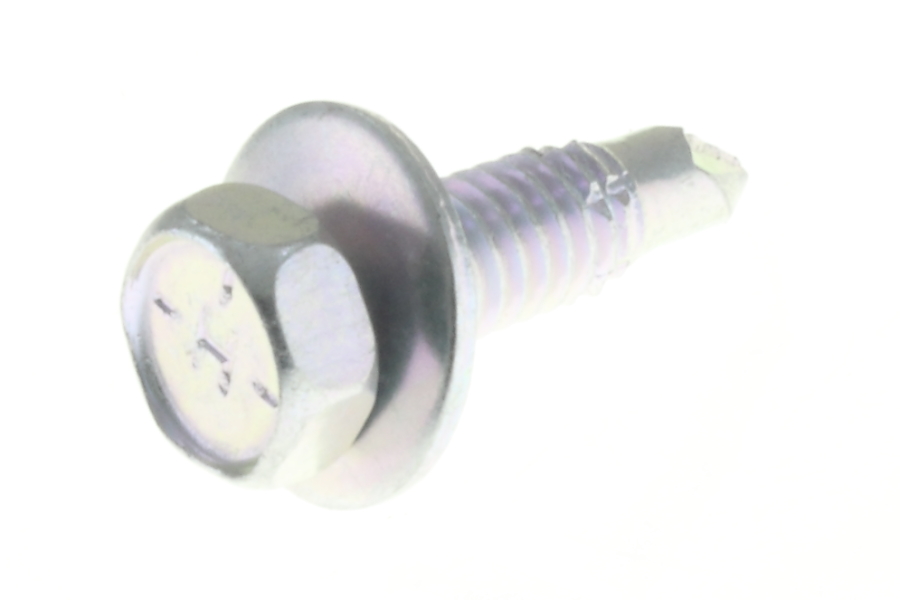

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

1200
HasPaintClearing

1
HasPilot

1
HasWasher

1
HeadHeight

5.6
HeadType

Hexagon
Length

20.8
LockingType

Undefined
PilotType

Cone
PropertyClass

SteelGrade05
ThreadLength

19.6
ThreadPitch

18
ThreadSize

5/16
ThreadSpecial

Standard
ThreadType

Unified
ToolSize

0.5
ToolType

ExternalHexagon
TotalLength

28.6
WasherDiam

19.1
WasherHeight

1.3
WasherType

Conical
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AY00594ADD

The "5/16-18x1.125" HEX SEMS w/PIL PNT-F GR5 PHC" (AY00594ADD) is designed for durability and strength. Sourced from Navistar, this bolt is crafted from high-grade materials, ensuring it meets stringent industry standards. With a thread size of 5/16 inches and a thread pitch of 18, it provides a precise fit for various applications.

This bolt features a unified thread type, enhancing its compatibility in diverse mechanical assemblies. The hexagon head offers easy engagement with tools, while the piloted cone point aids in precise alignment during installation. This characteristic is vital in applications requiring accurate positioning. The inclusion of a conical washer adds stability, distributing load uniformly, which minimizes the risk of loosening during operation.

Packaged with a box quantity of 1200, this bolt is ideal for bulk applications, saving both time and cost. The total length of 28.6 mm and a head height of 5.6 mm make it suitable for a range of fastening needs. With a robust steel grade classification, the AY00594ADD ensures lasting reliability, even under demanding conditions.

Engineered with a focus on efficiency, this bolt simplifies assembly processes, reducing the time required for installation. Its ability to maintain a firm connection makes it indispensable in sectors like automotive, where performance and reliability are critical. Equip your projects with the AY00594ADD to experience enhanced operational stability.
