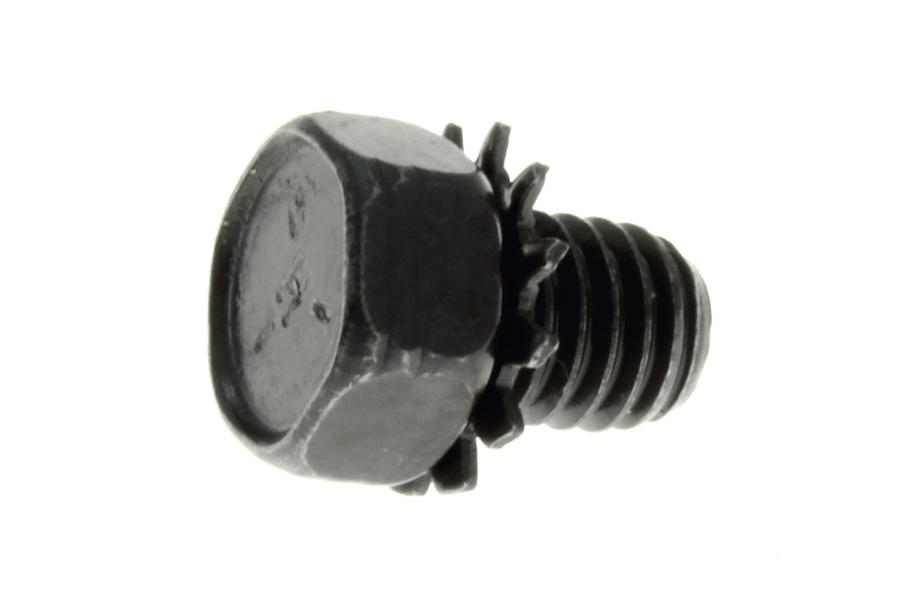

AY00618ADD - 3/8-16x.5" HEX SEMS BOLT GR5

3/8-16x.5" HEX SEMS BOLT GR5

Part № AY00618ADD

Coating None
headtype Hexagon
threadsize 3/8
totallength 12.7
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

1200
Comment

tooth washer
HasWasher

1
HeadHeight

7.1
HeadType

Hexagon
Length

12.7
LockingType

Undefined
PilotType

Undefined
PropertyClass

SteelGrade05
ThreadLength

11.8
ThreadPitch

16
ThreadSize

3/8
ThreadSpecial

Standard
ThreadType

Unified
ToolSize

0.5625
ToolType

ExternalHexagon
TotalLength

12.7
WasherDiam

16.4
WasherHeight

0.9
WasherType

Special
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AY00618ADD

The 3/8-16x.5" HEX SEMS Bolt, with part number AY00618ADD, is a reliable component for various fastening applications. Designed with a hexagon head, it offers a secure grip and ease of installation. Produced under the Navistar brand, this bolt features a unified thread type with a thread pitch of 16 and a thread size of 3/8, ensuring broad compatibility.

Made from SteelGrade05, this Grade 5 bolt combines strength and durability, suitable for challenging environments. The SEMS bolt includes a special tooth washer, which enhances its holding capacity and prevents loosening due to vibration. With a total length of 12.7mm and a head height of 7.1mm, it meets diverse assembly needs efficiently.

Available in box quantities of 1200, these bolts cater to bulk requirements effectively, minimizing the need for frequent reorders. This feature is essential for automotive and industrial applications, especially for smaller companies aiming to optimize their inventory management.

Featuring an external hexagon tool type and a washer diameter of 16.4mm, this bolt ensures a robust connection, reinforcing the integrity of mechanical assemblies. Choose the AY00618ADD for a dependable and effective fastening solution.
