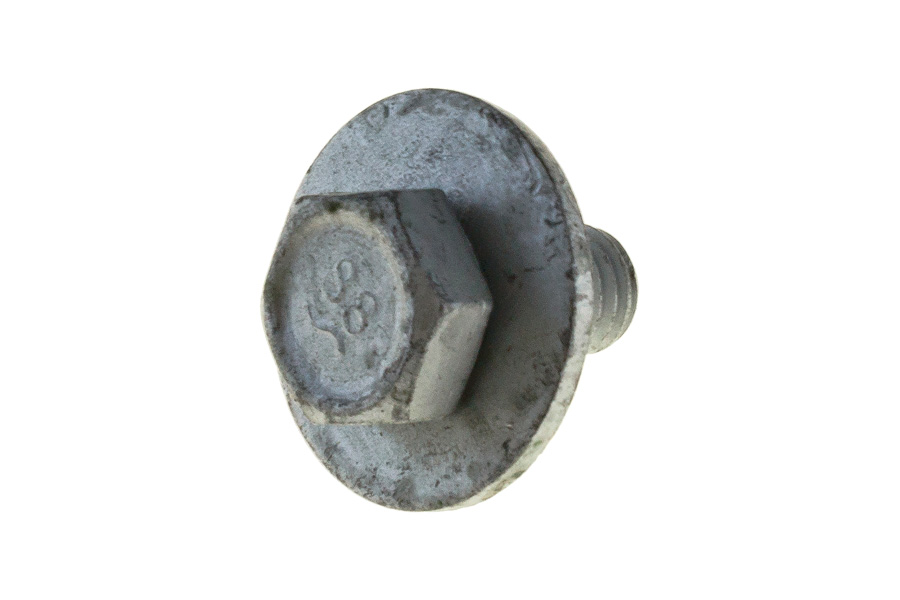

AZ00023ADD - M8-1.25x16 SPCL HCS W/FLTWSHR ASSY PC 8.8 DAC 320+L

M8-1.25x16 SPCL HCS W/FLTWSHR ASSY PC 8.8 DAC 320+L

Part № AZ00023ADD

Coating DBL 9440.40
headtype Hexagon
threadsize M8
totallength 16
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

800
HasWasher

1
HeadHeight

5.3
HeadType

Hexagon
Length

16
LockingType

Undefined
PilotType

Undefined
PropertyClass

SteelPC8_8
ThreadLength

13
ThreadPitch

1,25
ThreadSize

M8
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

13
ToolType

ExternalHexagon
TotalLength

16
WasherDiam

24
WasherHeight

2
WasherType

Flat
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AZ00023ADD

The M8-1.25x16 SPCL HCS W/FLTWSHR ASSY, part number AZ00023ADD, is designed to provide reliable fastening solutions across various applications. With a robust hexagon head and integrated flat washer, this bolt ensures a secure fit, enhancing stability in assemblies subjected to movement or vibration. Sourced through Tiers, it features a durable construction adhering to the SteelPC8_8 property class, ensuring strength and longevity.

With a thread size of M8 and a precise thread pitch of 1.25, this metric bolt fits seamlessly into pre-threaded holes, offering a strong and stable connection. The bolt measures 16mm in total length, with a thread length of 13mm, making it suitable for a range of installation requirements. The included flat washer has a diameter of 24mm, providing additional load distribution and reducing stress on the materials being joined.

Perfect for automotive use and other sectors where robust fastening is critical, this product is delivered in boxes of 800 units, ensuring you have a plentiful supply for your projects. Whether you're sourcing components for manufacturing or repair, this bolt offers a dependable choice. Available through our easy-to-navigate webshop, the M8-1.25x16 SPCL HCS bolt, marked with part number AZ00023ADD, is part of our wide array of threaded fasteners, ensuring you have the right fit for every need.
