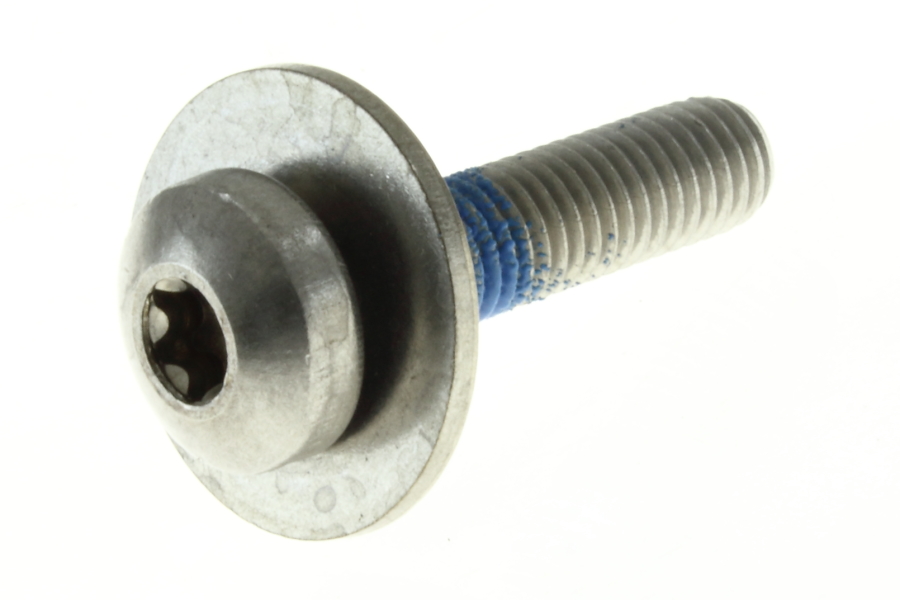

AZ00050ADD - M8x1.25-35mm PAN LCK SEMS 6PT-LB SSTL PSSVD

M8x1.25-35mm PAN LCK SEMS 6PT-LB SSTL PSSVD

Part № AZ00050ADD

Coating Passivated
headtype Pan
threadsize M8
totallength 35
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

700
HasLock

1
HasWasher

1
HeadDiam

15.8
HeadHeight

5.8
HeadType

Pan
Length

35
LockingType

NylonPatch
PilotType

Undefined
PropertyClass

StainlessSteel
ThreadLength

33.1
ThreadPitch

1,25
ThreadSize

M8
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

40
ToolType

InternalTorx
TotalLength

35
WasherDiam

25.1
WasherHeight

2
WasherType

Flat
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AZ00050ADD

Explore the functionality of the M8x1.25-35mm PAN LCK SEMS 6PT-LB SSTL PSSVD bolt, part number AZ00050ADD, designed for projects where quality is essential. Supplied in a box quantity of 700, these bolts cater to extensive application needs. As a Navistar product, this bolt is synonymous with precision and trustworthiness, ensuring a secure fit in various settings.

Made from premium stainless steel, this bolt includes a pan head design, facilitating smooth and efficient fastening. The inclusion of a flat washer enhances its performance by evenly distributing pressure and reducing the risk of component damage. Its M8 thread size, paired with a 1.25mm thread pitch, offers a perfect combination of strength and ease of use. The bolt's nylon patch locking mechanism adds an extra layer of security, preventing loosening from vibrations.

The internal Torx tool type simplifies installation, making it an essential component in your toolkit. Whether you're sourcing parts for automotive projects or need reliable fasteners for complex assemblies, this bolt meets stringent industry standards. Rely on the durability and precision engineering of this bolt for every application.

The M8x1.25-35mm bolt also features a head diameter of 15.8mm and a head height of 5.8mm, providing the precise dimensions needed for many OEM specifications. Its standard metric thread type ensures compatibility with a wide range of automotive applications, streamlining your sourcing needs and supporting efficient production processes.
