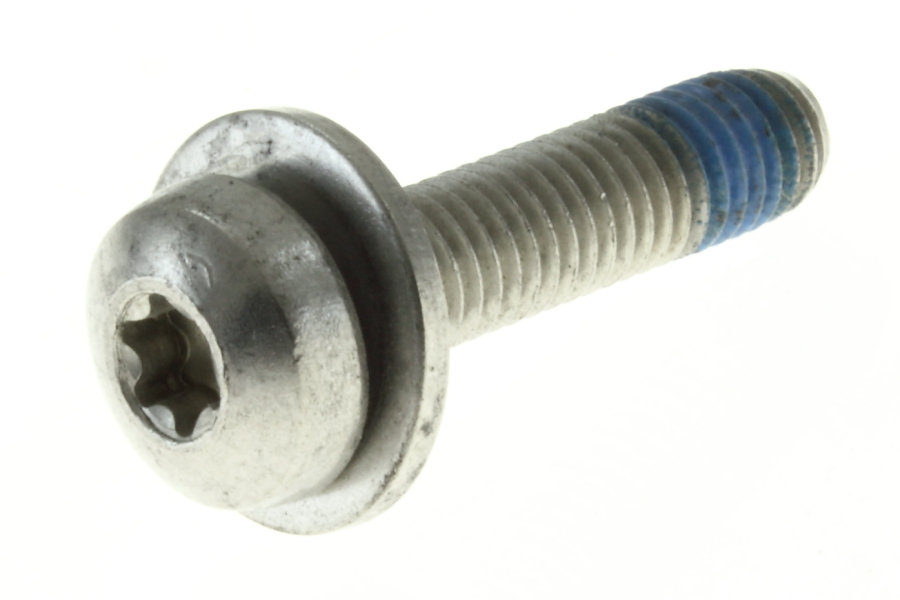

AZ00059ADD - M8x1.25-35mm PAN LCK SEMS 6PT-LB SSTL PSSVD

M8x1.25-35mm PAN LCK SEMS 6PT-LB SSTL PSSVD

Part № AZ00059ADD

Coating Passivated
headtype Pan
threadsize M8
totallength 35
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

750
HasLock

1
HasWasher

1
HeadDiam

15.8
HeadHeight

5.8
HeadType

Pan
Length

35
LockingType

NylonPatch
PilotType

Undefined
PropertyClass

StainlessSteel
ThreadLength

33.1
ThreadPitch

1,25
ThreadSize

M8
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

40
ToolType

InternalTorx
TotalLength

35
WasherDiam

20
WasherHeight

2
WasherType

Flat
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AZ00059ADD

The M8x1.25-35mm PAN LCK SEMS 6PT-LB SSTL PSSVD, part number AZ00059ADD, is a versatile bolt designed for various applications. Crafted from stainless steel, this bolt offers excellent durability and resistance to corrosion. The pan head design, with a 15.8 mm diameter and a 5.8 mm height, ensures a secure fit in diverse settings, making it an ideal choice for automotive and industrial use.

Featuring a metric thread size of M8 and a thread pitch of 1.25, this bolt provides a strong connection with enhanced stability. The built-in washer and lock, using the NylonPatch locking type, add an extra layer of security, preventing loosening due to vibrations. Designed for easy handling, it requires an Internal Torx tool, size 40, for efficient fastening or loosening.

With a total length of 35 mm and a threaded length of 33.1 mm, this bolt is sourced from the reputable brand Navistar, ensuring reliable performance. Packaged in a box quantity of 750, it offers substantial availability for both small-scale projects and large-scale operations. The flat washer, measuring 20 mm in diameter and 2 mm in height, further supports its robustness. Explore the benefits of this meticulously designed bolt to enhance your projects with confidence.
