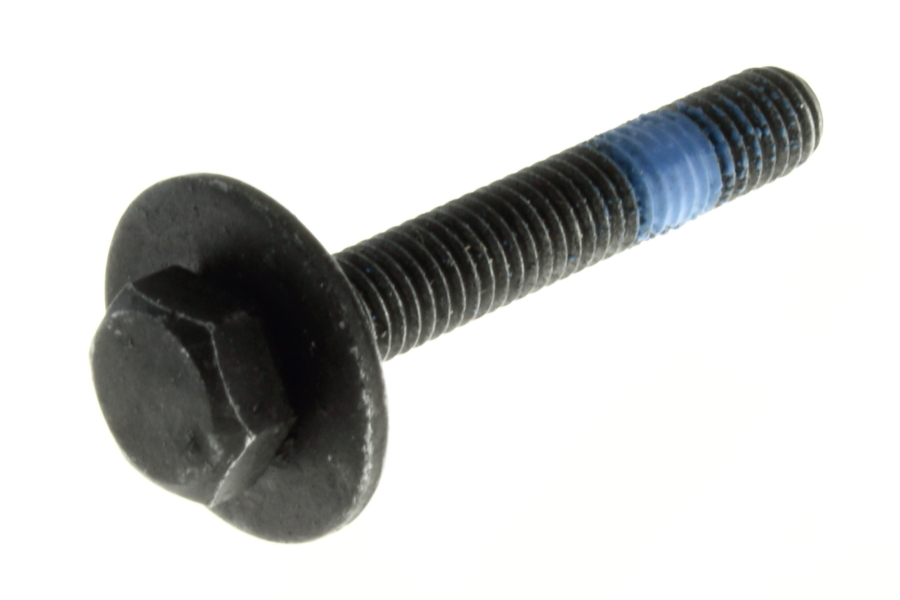

AZ00071ADD - M6x1-40mm HEX LOCK SEMS NYL PTCH PC8.8 ZABLK

M6x1-40mm HEX LOCK SEMS NYL PTCH PC8.8 ZABLK

Part № AZ00071ADD

Coating ZABLK
headtype Hexagon
threadsize M6
totallength 40
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

1200
HasLock

1
HasWasher

1
HeadHeight

4
HeadType

Hexagon
Length

40
LockingType

NylonPatch
PilotType

Undefined
PropertyClass

SteelPC8_8
ThreadLength

38.5
ThreadPitch

1
ThreadSize

M6
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

10
ToolType

ExternalHexagon
TotalLength

40
WasherDiam

18.5
WasherHeight

1.5
WasherType

Flat
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

AZ00071ADD

The M6x1-40mm HEX LOCK SEMS NYL PTCH PC8.8 ZABLK bolt, part number AZ00071ADD, is a reliable choice for those needing a secure connection in demanding environments. Produced by Navistar, this bolt ensures durability with its strong steel construction, classified under Steel PC8_8. Designed with a hexagon head, it provides ease of installation with a tool size that matches its external hexagon profile.

Featuring an M6 thread size paired with a 1.0 thread pitch, this bolt facilitates a precise fit, minimizing the risk of cross-threading. The nylon patch enhances its locking capability, ensuring stability in applications subject to vibrations. It is accompanied by a flat washer, offering an additional layer of security and load distribution.

Available in a box quantity of 1200, this bolt meets the demands of automotive applications, particularly where secure and robust fastening is critical. Whether you're maintaining vehicles or assembling parts, this bolt offers reliability along with high performance in both high-stress and routine environments.

With a total length of 40mm and a thread length of 38.5mm, this bolt is designed to meet diverse mechanical requirements. Its black coating not only adds a sleek appearance but also provides protection against corrosion, ensuring longevity. This makes it an ideal choice for industries where both aesthetics and functionality are paramount.
