Technical details

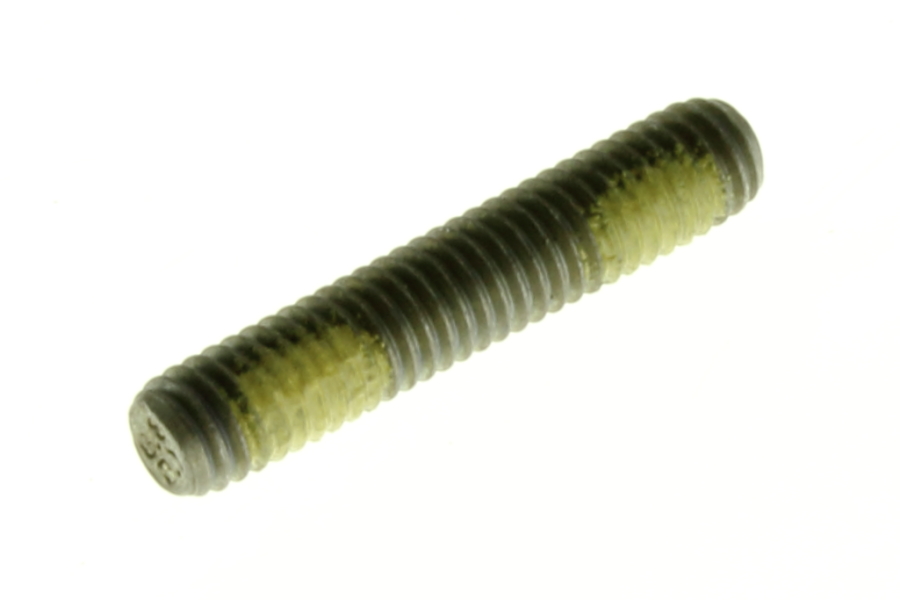

Feature images are indicative only. Refer to technical drawing for final dimensions.
| DriveSide | None |
|---|---|
| LengthA | 16 |
| LengthB | 16 |
| LockingFeatureA | 1 |
| LockingFeatureB | 1 |
| LockingTypeA | NylonPatch |
| LockingTypeB | NylonPatch |
| PilotTypeA | Undefined |
| PilotTypeB | Undefined |
| PropertyClass | SteelPC8_8 |
| StudLength | 32 |
| ThreadLengthA | 16 |
| ThreadLengthB | 16 |
| ThreadPitchA | 1 |
| ThreadPitchB | 1 |
| ThreadSizeA | |
| ThreadSizeB | M6 |
| ThreadSpecialA | Standard |
| ThreadSpecialB | Standard |
| ThreadTypeA | Metric |
| ThreadTypeB | Metric |
| ToolType | None |
| WasherType | Undefined |
| Coating | View details |
