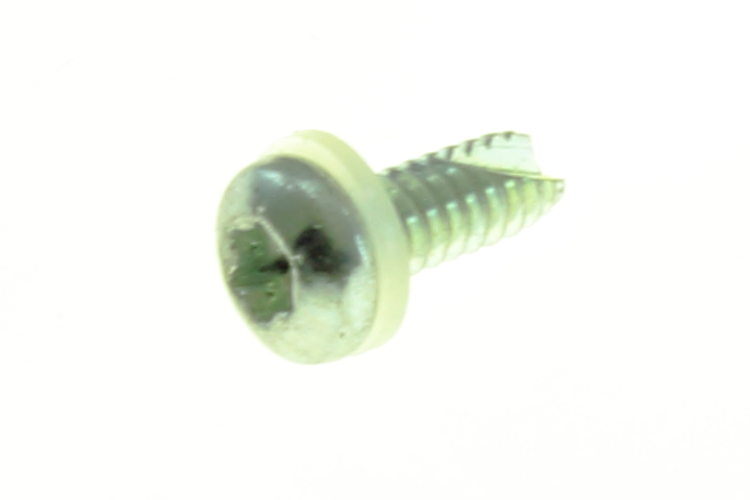

SX00040ADD - #6-32x0.36 TORX PAN HD THDCUT SEMS T/S TYP T(15) STL

#6-32x0.36 TORX PAN HD THDCUT SEMS T/S TYP T(15) STL

Part № SX00040ADD

Coating F70B21B2
headtype Pan
threadsize #6
totallength 9.1
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

3280
Comment

Point 23. Plastic Washer. N.o 4 washer thickness
HasWasher

1
HeadDiam

6.7
HeadHeight

2.3
HeadType

Pan
Length

9.1
LockingType

Undefined
PilotType

Undefined
PropertyClass

LowCarbonSteel
ThreadLength

9.1
ThreadPitch

32
ThreadSize

#6
ThreadSpecial

Standard
ThreadType

Unified
ToolSize

15
ToolType

InternalTorx
TotalLength

9.1
WasherDiam

7.1
WasherHeight

0.8
WasherType

Flat
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

SX00040ADD

The #6-32x0.36 TORX PAN HD THDCUT SEMS T/S TYP T(15) STL, part number SX00040ADD, is designed to deliver durable and reliable fastening. This bolt is crafted from low carbon steel, ensuring robust performance for various applications. With a thread size of #6 and a thread pitch of 32, it offers precision and strength, making it suitable for tasks that demand secure fastening.

Featuring an internal Torx drive, the bolt is easy to install with the appropriate tool size of 15. The pan head and the inclusion of a flat plastic washer enhance its utility, providing a stable and flush fitting in assembly. This bolt is available in a box quantity of 3280, supplying ample inventory for industrial or manufacturing needs.

Sourced from Tiers, this bolt meets stringent quality standards. Its comprehensive design, which includes a washer diameter of 7.1 and a total length of 9.1, ensures compatibility with a variety of components, making it an essential part of your fastening solutions. Whether for automotive or mechanical purposes, the SX00040ADD bolt maintains its hold even under conditions of repeated movement or vibration.

Additionally, this bolt's standardized unified thread type further simplifies selection and application, ensuring consistency across different projects. Its reliability in maintaining a secure fit makes it a preferred choice for professionals seeking dependable results in their assembly tasks.
