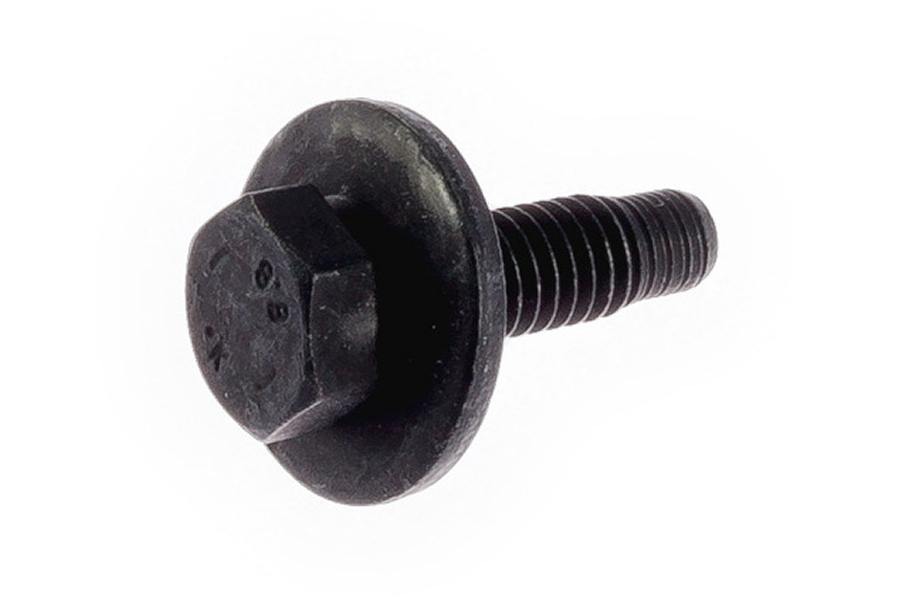

W505422S450B - BOLT & WASHER M6x16 HEX HDCONL NP 8

BOLT & WASHER M6x16 HEX HDCONL NP 8

Part № W505422S450B

Coating S450B
headtype Hexagon
threadsize M6
totallength 20.5
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

1000
HasPilot

1
HasWasher

1
HeadHeight

4.2
HeadType

Hexagon
Length

16
LockingType

Undefined
PilotType

Np
PropertyClass

SteelPC8_8
ThreadLength

13.3
ThreadPitch

1
ThreadSize

M6
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

10
ToolType

ExternalHexagon
TotalLength

20.5
WasherDiam

18
WasherHeight

2.2
WasherType

Conical
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

W505422S450B

The BOLT & WASHER M6x16 HEX HDCONL NP 8, part number W505422S450B, is a dependable choice for diverse fastening needs. Featuring a robust hexagon head and conical washer, this bolt ensures a secure connection while allowing for easy installation using an external hexagonal tool. The metric thread is M6 in size, with a precise thread pitch of 1, making it suitable for various applications where stability is key. Crafted from SteelPC8_8, the bolt offers excellent durability and strength, standing up to demanding environments.

Designed with versatility in mind, the total length of 20.5 mm, including a thread length of 13.3 mm, provides flexibility for both surface and deeper insertions. The washer, with a diameter of 18 mm and a height of 2.2 mm, complements the bolt’s design, enhancing grip and distribution of force. Packaged in quantities of 1000, this product is ideal for projects requiring multiple units, ensuring consistent performance across the board.

Originating from Ford, this bolt is a suitable choice for automotive and industrial applications where quality is critical. The integrated washer and pilot features simplify assembly processes, reducing installation times and potential errors. Explore the capabilities of the BOLT & WASHER M6x16 in your next project and experience the assurance of a solid, dependable fastener.
