Technical details

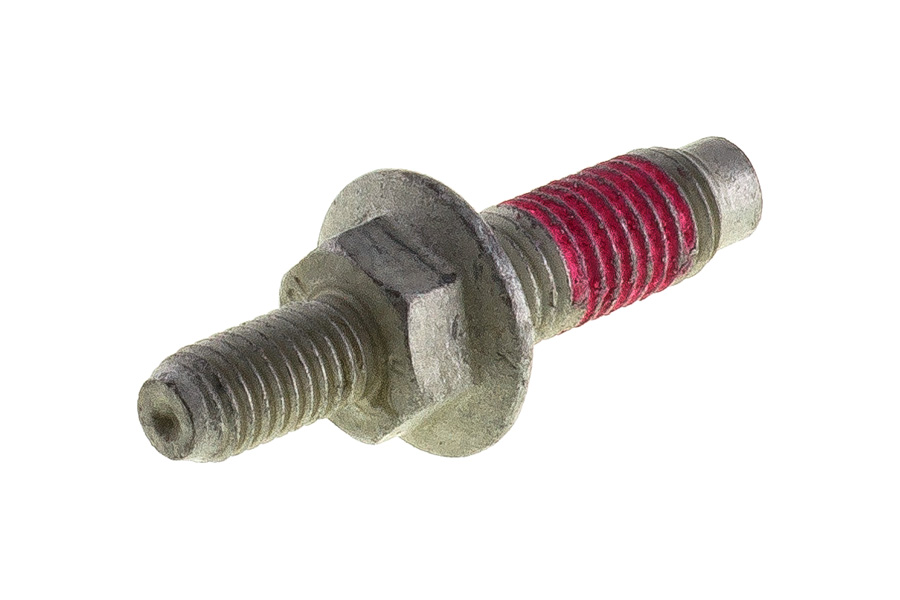

Feature images are indicative only. Refer to technical drawing for final dimensions.
| DriveSide | B |
|---|---|
| HasPilotA | 1 |
| LengthA | 24.3 |
| LengthB | 15.6 |
| LockingFeatureA | 1 |
| LockingTypeA | MicroEncapsulation |
| LockingTypeB | Undefined |
| PilotTypeA | Dog |
| PilotTypeB | Undefined |
| PropertyClass | SteelPC10_9 |
| StudLength | 52.8 |
| ThreadLengthA | 21.3 |
| ThreadLengthB | 10.5 |
| ThreadPitchA | 1,5 |
| ThreadPitchB | 1,25 |
| ThreadSizeA | |
| ThreadSizeB | M8 |
| ThreadSpecialA | Standard |
| ThreadSpecialB | Standard |
| ThreadTypeA | Metric |
| ThreadTypeB | Metric |
| ToolSize | 13 |
| ToolType | HexagonFlange |
| WasherType | Undefined |
| Coating | View details |
