Technical details

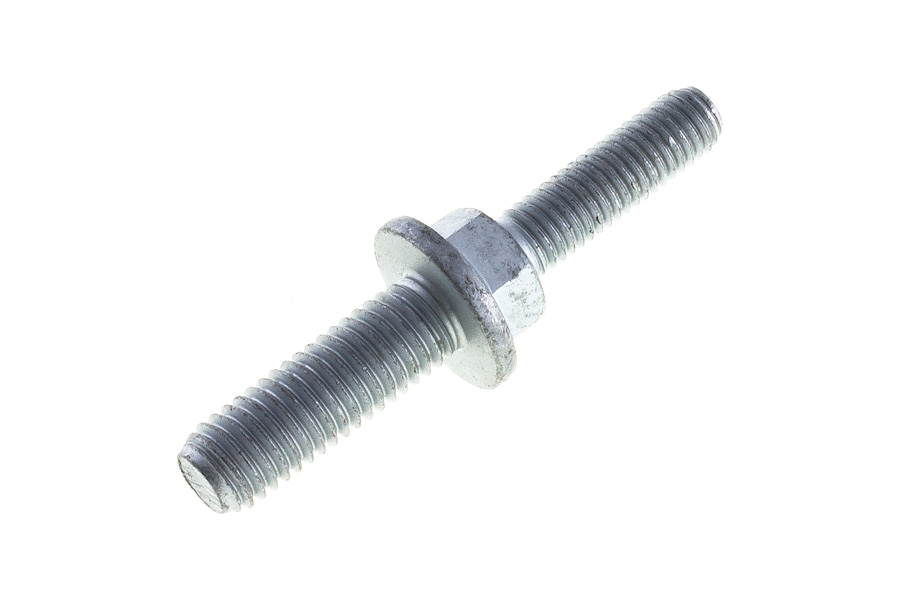

Feature images are indicative only. Refer to technical drawing for final dimensions.
| DriveSide | B |
|---|---|
| LengthA | 30 |
| LengthB | 27 |
| LockingTypeA | Undefined |
| LockingTypeB | Undefined |
| PilotTypeA | Undefined |
| PilotTypeB | Undefined |
| PropertyClass | SteelPC10_9 |
| StudLength | 66.7 |
| ThreadLengthA | 25.5 |
| ThreadLengthB | 23.5 |
| ThreadPitchA | 1,5 |
| ThreadPitchB | 1,25 |
| ThreadSizeA | |
| ThreadSizeB | M8 |
| ThreadSpecialA | Standard |
| ThreadSpecialB | Standard |
| ThreadTypeA | Metric |
| ThreadTypeB | Metric |
| ToolSize | 13 |
| ToolType | HexagonFlange |
| WasherType | Undefined |
| Coating | View details |
