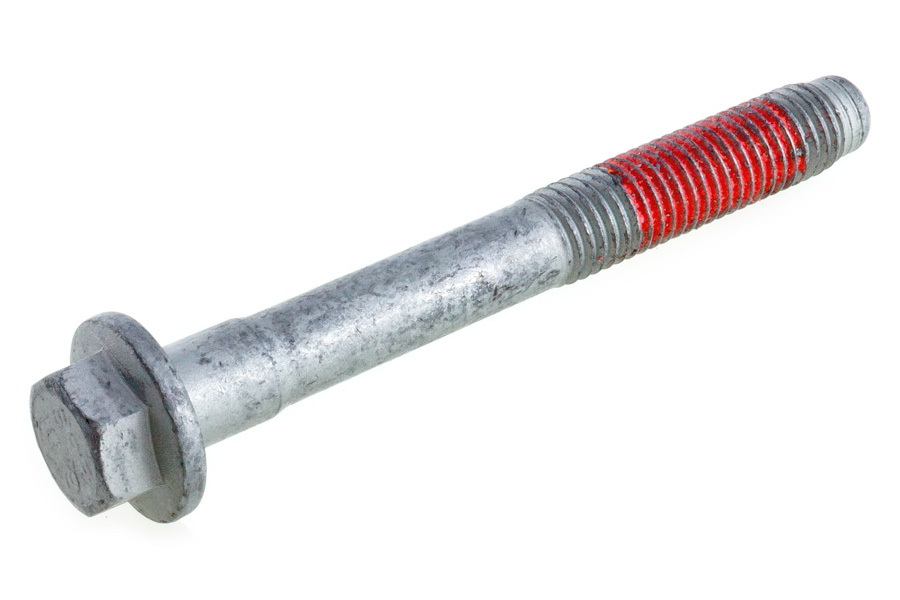

W713478S439 - Bolt M14x112 Hf Np Adh Spl10

Bolt M14x112 Hf Np Adh Spl10

Part № W713478S439

Coating S439
headtype HexgonFlange
threadsize M14
totallength 117
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

85
Comment

DRILOC 204
HasLock

1
HasPilot

1
HeadDiam

28.6
HeadHeight

12.2
HeadType

HexgonFlange
Length

111.7
LockingType

MicroEncapsulation
PilotType

Np
PropertyClass

SteelPC10_9
ThreadLength

50.7
ThreadPitch

2
ThreadSize

M14
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

18
ToolType

ExternalHexagon
TotalLength

117
WasherType

Undefined
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

W713478S439

The "Bolt M14x112 Hf Np Adh Spl10" with part number W713478S439 is crafted for reliability and strength in mechanical applications. This bolt is sourced from Ford, ensuring a high level of quality. It features a hexagon flange head, providing excellent grip during torque application. With its M14 thread size and a pitch of 2mm, it securely fits into a variety of threaded components.

The bolt's dimensions enhance its applicability in heavy-duty scenarios—boasting a total length of 117mm and a thread length of 50.7mm. The head diameter is 28.6mm, coupled with a head height of 12.2mm, ensuring substantial surface contact and stability. Engineered from SteelPC10_9, it promises durability under stress, making it suitable for demanding environments.

With a coating that offers protection and a microencapsulation locking type, it provides additional security against loosening due to vibrations. Each box contains 85 of these bolts, making them readily available for projects requiring multiple units. Designed with precision, its role in manufacturing and assembly processes is indispensable, especially in the automotive sector. Whether for installation or replacement, this product meets specific OEM requirements and guarantees a robust connection. The bolt is an essential component, offering not only functionality but also peace of mind in critical applications.
