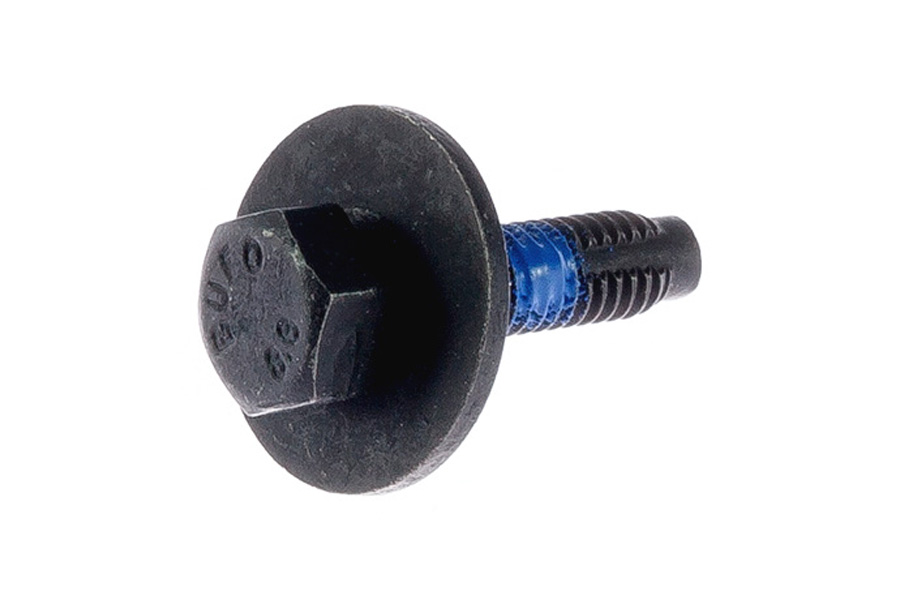

W714576S303 - Bolt&Wshr M6x15 HX PTP PTCFL 8

Bolt&Wshr M6x15 HX PTP PTCFL 8

Part № W714576S303

Coating S303
headtype Hexagon
threadsize M6
totallength 22.5
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

HasLock

1
HasPaintClearing

1
HasPilot

1
HasWasher

1
HeadHeight

5
HeadType

Hexagon
Length

19.5
LockingType

NylonPatch
PilotType

Dog
PropertyClass

SteelPC8_8
ThreadLength

17.9
ThreadPitch

1
ThreadSize

M6
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

10
ToolType

ExternalHexagon
TotalLength

22.5
WasherDiam

20
WasherHeight

1.6
WasherType

Flat
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

W714576S303

The Bolt&Wshr M6x15 HX PTP PTCFL 8, part number W714576S303, is a versatile fastening solution crafted with precision to meet demanding applications. Sourced from Ford, this bolt combines durability and functionality, making it a reliable choice for various automotive projects. The hexagon head design ensures a secure fit, while the integrated washer enhances load distribution, reducing stress on the assembly.

With a total length of 22.5 mm and a thread size of M6, this bolt is designed for compatibility with numerous systems. Its thread pitch of 1 mm ensures a tight, precision fit, maintaining stability even under dynamic conditions. The inclusion of a nylon patch serves as a built-in locking mechanism, preventing loosening due to vibrations, which is crucial in automotive environments.

Further enhancing its utility, the bolt features a dog pilot type, offering smooth guidance during installation. Manufactured from SteelPC8_8, it boasts high tensile strength, ensuring it withstands rigorous use. The flat washer, with a diameter of 20 mm, complements the bolt’s structure, providing additional security and reducing rotational movement.

This meticulously designed bolt seamlessly fits into any toolkit, promising efficiency and consistency. Whether you're maintaining or assembling automotive components, the Bolt&Wshr M6x15 HX PTP PTCFL 8 is engineered to deliver optimal performance with each use.
