Technical details

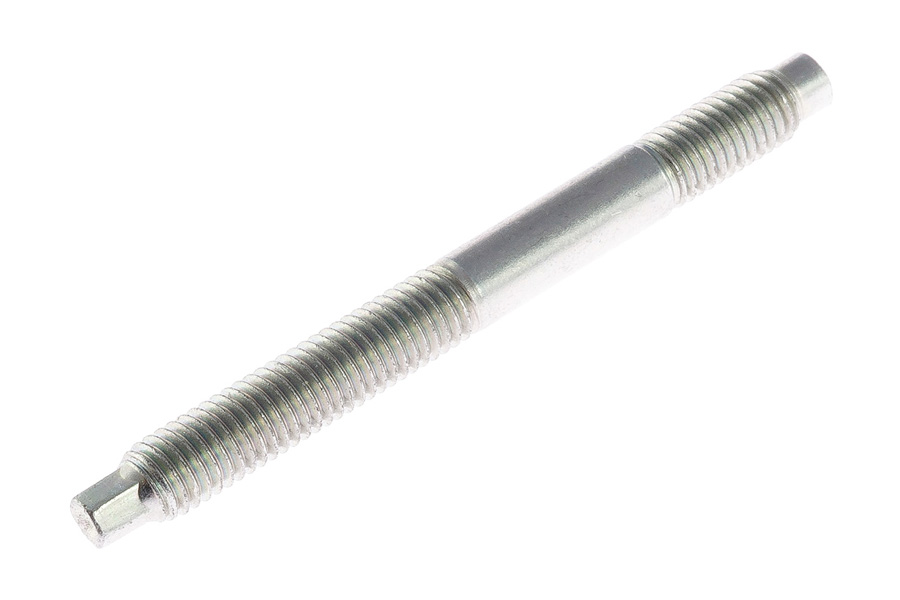

Feature images are indicative only. Refer to technical drawing for final dimensions.
| DriveSide | A |
|---|---|
| HasPilotA | 1 |
| HasPilotB | 1 |
| LengthA | 63.5 |
| LengthB | 14.5 |
| LockingTypeA | Undefined |
| LockingTypeB | Undefined |
| PilotTypeA | Special |
| PilotTypeB | Dog |
| PropertyClass | SteelPC8_8 |
| StudLength | 78.6 |
| ThreadLengthA | 35 |
| ThreadLengthB | 14.5 |
| ThreadPitchA | 1,25 |
| ThreadPitchB | 1,25 |
| ThreadSizeA | |
| ThreadSizeB | M8 |
| ThreadSpecialA | Standard |
| ThreadSpecialB | Standard |
| ThreadTypeA | Metric |
| ThreadTypeB | Metric |
| ToolSize | 5 |
| ToolType | Hexagon |
| WasherType | Undefined |
| Coating | View details |
