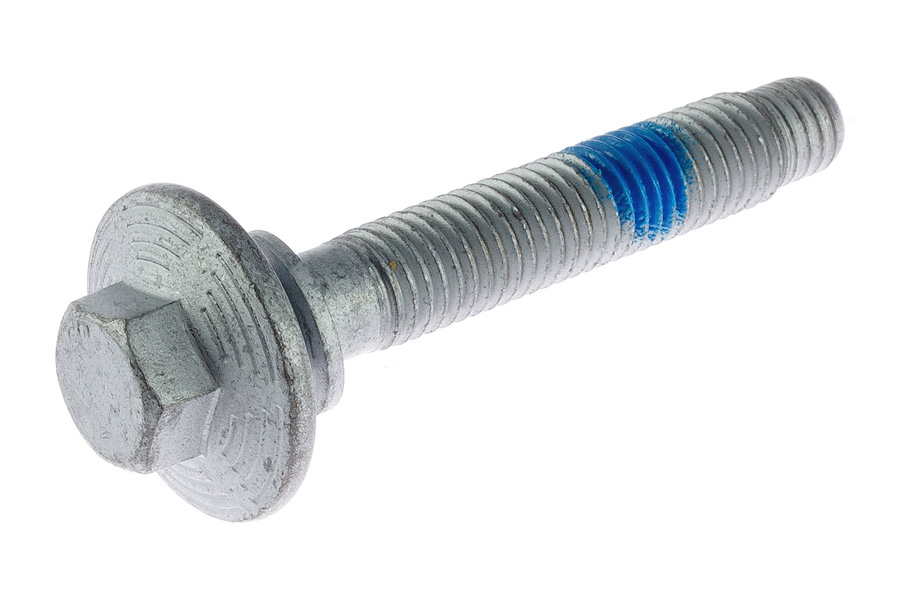

W715830S442 - bolt & wshr m12x66 hf np ptp spl 10

bolt & wshr m12x66 hf np ptp spl 10

Part № W715830S442

Coating S442
headtype HexgonFlange
threadsize M12
totallength 74.8
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

100
HasLock

1
HasPilot

1
HasWasher

1
HeadDiam

32
HeadHeight

12.5
HeadType

HexgonFlange
Length

66
LockingType

NylonPatch
PilotType

Np
PropertyClass

SteelPC10_9
ThreadLength

47
ThreadPitch

1,75
ThreadSize

M12
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

15
ToolType

ExternalHexagon
TotalLength

74.8
WasherDiam

18
WasherHeight

2
WasherType

Flat
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

W715830S442

The Facil bolt & washer M12x66 HF NP PTP SPL 10, part number W715830S442, offers a robust solution for secure fastening needs in the automotive sector. With a durable construction classified under SteelPC10_9, this bolt is designed to withstand significant stress, maintaining impeccable strength. It features a hexagon flange head for stability and a metric thread type, ensuring compatibility with standard components.

Engineered with precision, this bolt features a thread size of M12 and a thread pitch of 1.75, delivering a firm grip when fastened. The integrated nylon patch locking type enhances the bolt's ability to hold under movement or vibration, making it ideal for dynamic environments. Additionally, it is equipped with a flat washer to ensure proper load distribution and protection of the applied surface.

Available in a box quantity of 100, these bolts are sourced from Tiers, Ford, ensuring high quality and reliability. Its total length of 74.8 mm and a head diameter of 32 mm make it versatile for various applications where precise dimensions are essential. For those seeking dependable fastening solutions, this bolt is a reliable choice in the Facil lineup, ready to support complex automotive requirements.
