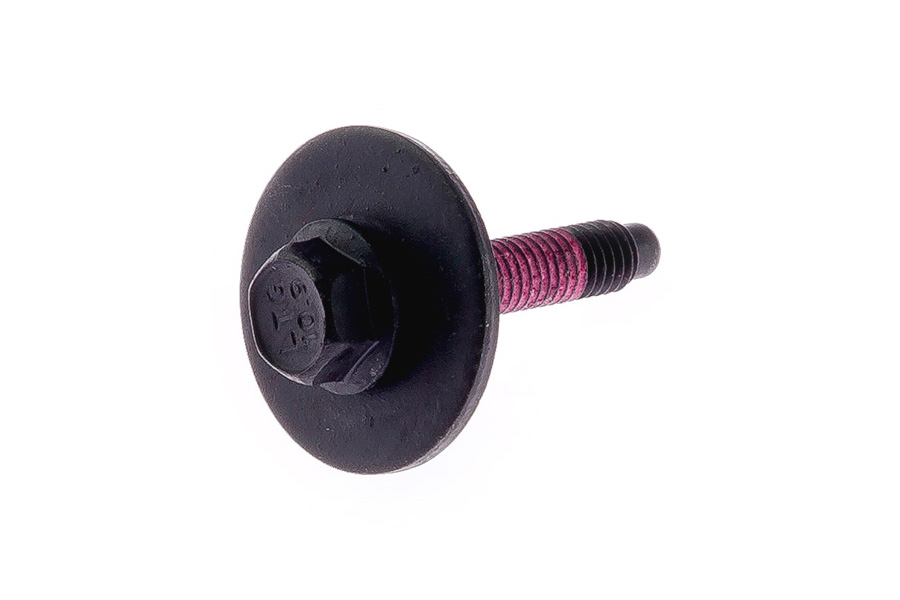

W718366S303 - Bolt & wshr M5x23 HF PIL ADH FL 10

Bolt & wshr M5x23 HF PIL ADH FL 10

Part № W718366S303

Coating S303
headtype HexgonFlange
threadsize M5
totallength 25.5
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

1000
HasLock

1
HasPilot

1
HasWasher

1
HeadDiam

11.4
HeadHeight

5.6
HeadType

HexgonFlange
Length

23
LockingType

MicroEncapsulation
PilotType

Dog
PropertyClass

SteelPC10_9
ThreadLength

21.3
ThreadPitch

0,8
ThreadSize

M5
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

8
ToolType

ExternalHexagon
TotalLength

25.5
WasherDiam

22
WasherHeight

1.7
WasherType

Flat
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

W718366S303

The Bolt & Washer M5x23, part number W718366S303, is crafted to provide reliable performance in various applications. Engineered with a Hexagon Flange head, this bolt ensures a secure fit and enhanced stability. Designed with a Metric thread type, it features a ThreadSize of M5 and a ThreadPitch of 0.8, making it suitable for precise applications where compatibility matters. With a length of 23 mm and a thread length of 21.3 mm, this bolt is ideal for tasks requiring precision fastening.

Enhanced with a MicroEncapsulation locking type, it offers added security against loosening from vibrations or dynamic loads. The Dog pilot type further aids in aligning and securing the bolt, facilitating smoother installations. Accompanied by a flat washer with a diameter of 22 mm, it ensures an even distribution of force to protect surfaces during tightening. As part of your toolbox, this bolt, sourced from Tiers, Ford, in a high box_quantity of 1000, offers excellent value, catering to both large-scale projects and routine maintenance tasks.

Its SteelPC10_9 property class guarantees high-strength performance, crucial for demanding situations. This product’s efficient design and composition not only promise robustness but also assure ease of integration into existing systems, making it an indispensable choice for professionals seeking quality and efficiency in their fastening solutions.
