Technical details

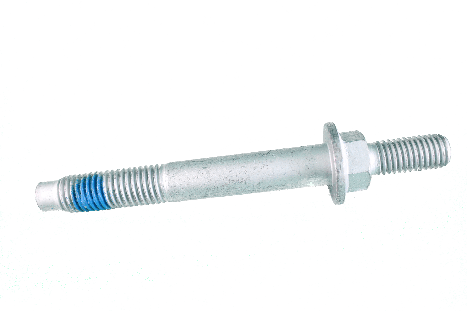

Feature images are indicative only. Refer to technical drawing for final dimensions.
| DriveSide | B |
|---|---|
| HasPilotA | 1 |
| LengthA | 95 |
| LengthB | 28 |
| LockingFeatureA | 1 |
| LockingTypeA | NylonPatch |
| LockingTypeB | Undefined |
| PilotTypeA | Dog |
| PilotTypeB | Undefined |
| PropertyClass | SteelPC10_9 |
| StudLength | 142 |
| ThreadLengthA | 35 |
| ThreadLengthB | 22 |
| ThreadPitchA | 2 |
| ThreadPitchB | 1,75 |
| ThreadSizeA | |
| ThreadSizeB | M12 |
| ThreadSpecialA | Standard |
| ThreadSpecialB | Standard |
| ThreadTypeA | Metric |
| ThreadTypeB | Metric |
| ToolSize | 18 |
| ToolType | HexagonFlange |
| WasherType | Undefined |
| Coating | View details |
