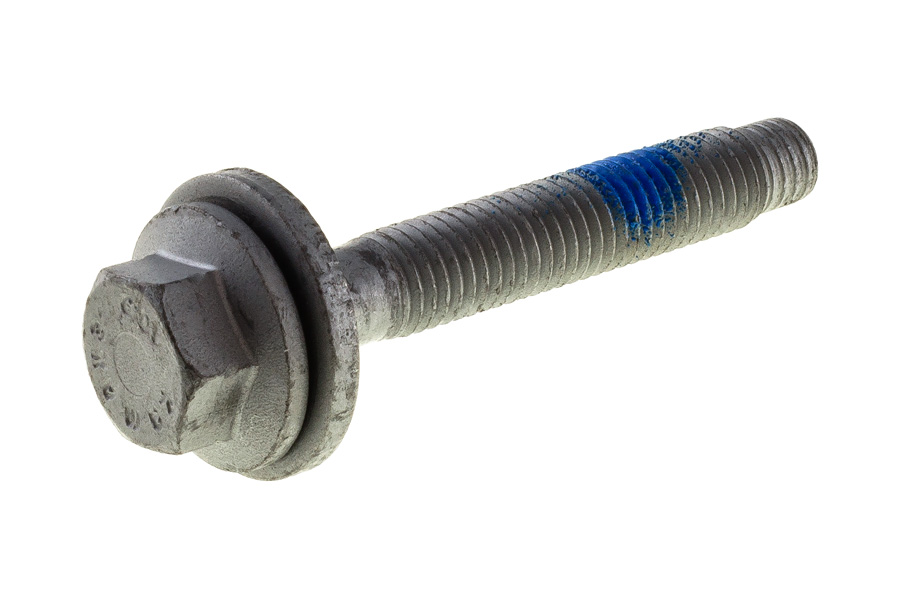

W720077S442 - BOLT&WSHR M12x70 GF NP PTP10

BOLT&WSHR M12x70 GF NP PTP10

Part № W720077S442

Coating S442
headtype HexgonFlange
threadsize M12
totallength 83
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

HasLock

1
HasPilot

1
HasWasher

1
HeadDiam

28.6
HeadHeight

12.9
HeadType

HexgonFlange
Length

70
LockingType

NylonPatch
PilotType

Np
PropertyClass

SteelPC10_9
ThreadLength

47
ThreadPitch

1,75
ThreadSize

M12
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

18
ToolType

ExternalHexagon
TotalLength

83
WasherDiam

32
WasherHeight

4
WasherType

Flat
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

W720077S442

The BOLT&WSHR M12x70 GF NP PTP10, part number W720077S442, is crafted to meet the demanding needs of the automotive sector. Sourced from Ford, this bolt features an integrated washer and locking system, ensuring a secure and reliable connection. With a thread size of M12 and a thread pitch of 1.75, it guarantees an optimal fit for various applications.

Constructed with high-grade steel of property class 10.9, this bolt is built for strength and durability. Its external hexagon head with a flange design enhances holding power, while the nylon patch locking type adds an extra layer of security, ideal for preventing loosening under vibration. The total length of the bolt is 83mm, offering ample reach and versatility during installation.

Featuring a head diameter of 28.6mm and a washer diameter of 32mm, it provides stability and even distribution of load, reducing stress on the assembly. The flat washer type complements the unit’s functionality, and the 47mm thread length accommodates a variety of fastening needs.

Especially tailored for automotive manufacturing and maintenance tasks, this bolt, identified by the part number W720077S442, ensures compatibility with OEM specifications. Its precise engineering simplifies assembly, making it a reliable choice for professionals seeking efficiency and dependability.
