W720325S439 - BOLT&WSHR M14x90 HF NP SPLFL 10

BOLT&WSHR M14x90 HF NP SPLFL 10

Part № W720325S439

Coating S439
headtype HexgonFlange
threadsize M14
totallength 100.5
Request quantity

Technical details

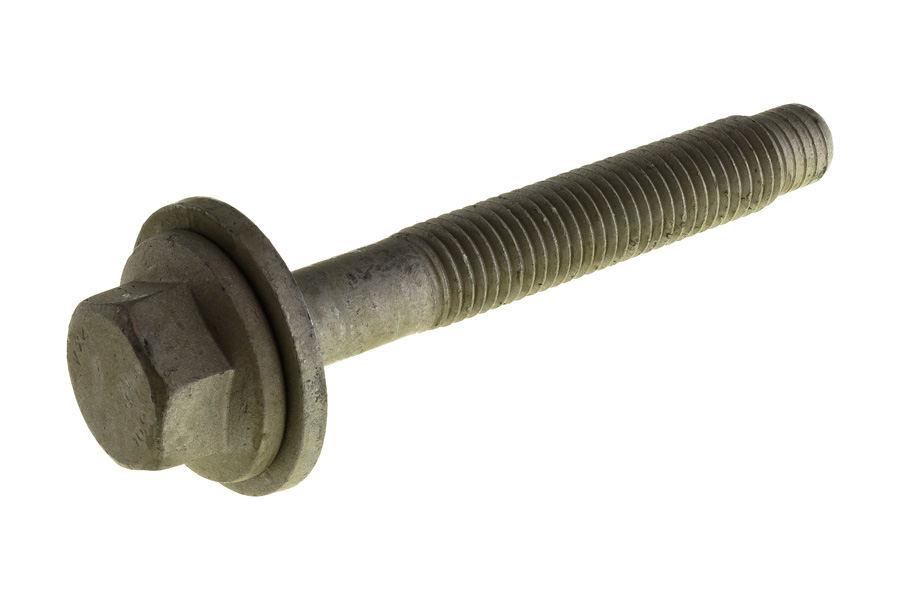

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

50
HasPilot

1
HasWasher

1
HeadDiam

32.8
HeadHeight

15.2
HeadType

HexgonFlange
Length

90
LockingType

Undefined
PilotType

Np
PropertyClass

SteelPC10_9
ThreadLength

57
ThreadPitch

2
ThreadSize

M14
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

21
ToolType

ExternalHexagon
TotalLength

100.5
WasherDiam

38
WasherHeight

4
WasherType

Flat
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

W720325S439

The BOLT&WSHR M14x90 with part number W720325S439 is a vital component for various applications requiring secure fastening. This bolt features a HexgonFlange head type, ensuring a firm grip during use. Crafted by Ford, it embodies quality and precision, providing reliability in demanding environments. With a thread size of M14 and a thread pitch of 2, this bolt guarantees stability and strength in assemblies, delivering optimal performance even under conditions of movement or vibration.

Accompanied by a flat washer, it offers enhanced load distribution, reducing potential damage to surfaces. The bolt's length of 90mm, together with a total length of 100.5mm, ensures versatility, making it suitable for a broad range of projects. Manufactured to a property class of SteelPC10_9, it showcases excellent tensile strength, adding to its durable nature.

Packaged in a box quantity of 50, this product is ideal for bulk needs, catering to both large-scale and smaller projects. With these dimensions and characteristics, the BOLT&WSHR M14x90 not only meets industry standards but also provides a robust solution for various fastening requirements.

Designed with practicality in mind, this bolt features a thread length of 57mm and an external hexagon tool type, accommodating a tool size of 21mm, which ensures ease of handling and installation. Its integration with a non-pilot type underscores its adaptability, making it a sought-after choice for professionals in the automotive sector and beyond.
