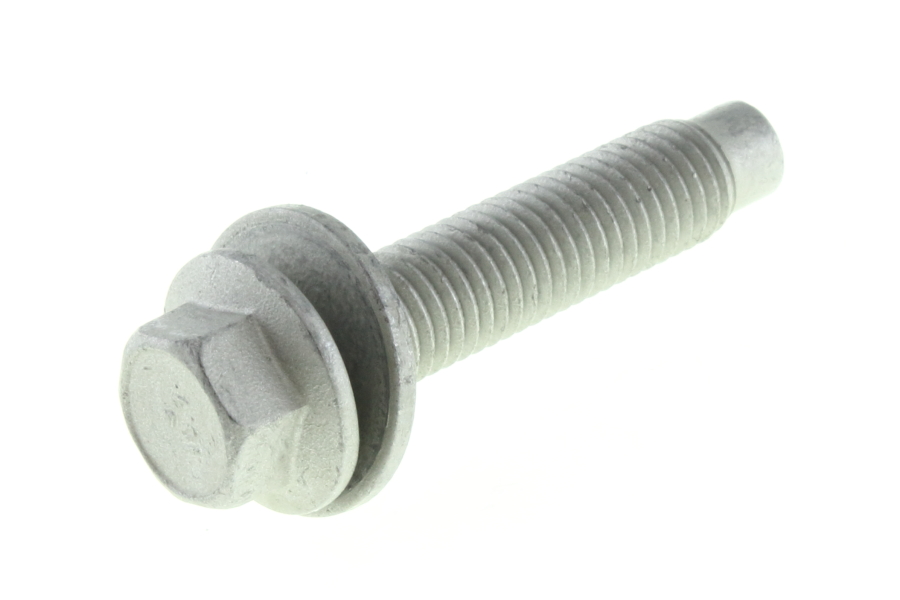

W720571S439 - BOLT & WSHR M14x60

BOLT & WSHR M14x60

Part № W720571S439

Coating S439
headtype HexgonFlange
threadsize M14
totallength 67
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

80
HasPilot

1
HasWasher

1
HeadDiam

28.6
HeadHeight

12.9
HeadType

HexgonFlange
Length

60
LockingType

Undefined
PilotType

Dog
PropertyClass

SteelPC10_9
ThreadLength

51.5
ThreadPitch

2
ThreadSize

M14
ThreadSpecial

Standard
ThreadType

Metric
ToolSize

18
ToolType

ExternalHexagon
TotalLength

67
WasherDiam

31.5
WasherHeight

2.5
WasherType

Flat
Coating View details

Features

Bolts technical drawing

Do you have any questions about this product?

Richard, our product expert on external threaded fasteners is ready to answer all your questions.

Technical support

W720571S439

The "BOLT & WSHR M14x60" (part number W720571S439) offers a dependable solution for securing various components, making it essential for a multitude of applications. This bolt, sourced from the renowned brand Ford, exemplifies quality and precision.

Constructed with a steel property class of PC10.9, this robust bolt is designed to withstand demanding environments. The hexagonal flange head and external hexagon tool type make installation straightforward and efficient, allowing for a secure fit. Accompanied by a flat washer, it ensures additional stability, minimizing the risk of loosening.

The dimensions are precisely crafted with a thread size of M14 and a thread pitch of 2, guaranteeing compatibility with a range of threaded systems. With a length of 60mm and a thread length of 51.5mm, it fits seamlessly into various structures. Each box contains a quantity of 80 bolts, making it convenient for larger projects or inventories.

Its design includes a Dog pilot type, adding further alignment accuracy during installation, making it suitable for critical applications. The washer diameter of 31.5mm and height of 2.5mm provide additional support, enhancing overall performance and reliability.

Whether used in the automotive sector or other industries, this bolt provides a reliable connection for your mechanical needs. Trust the "BOLT & WSHR M14x60" to maintain performance and security in your assemblies.
