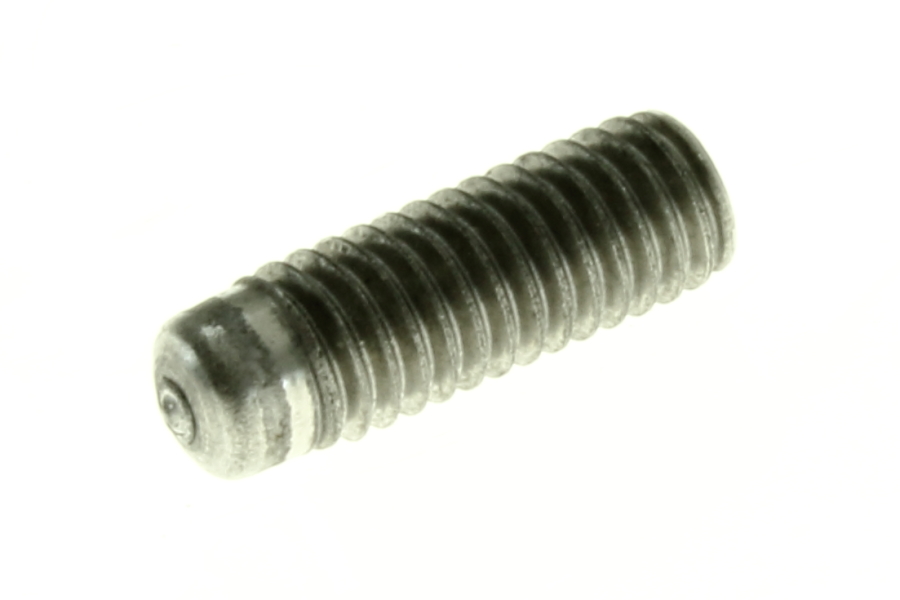

WD00321ADD - 3/8-16x1-1/8 HDLESS WELD STUD FULL THD STL PLN

3/8-16x1-1/8 HDLESS WELD STUD FULL THD STL PLN

Part № WD00321ADD

Coating None
threadsize 3/8
totallength 28.6
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

HeadDiameter

9.5
HeadHeight

6.4
PilotType

Undefined
PropertyClass

LowCarbonSteel
ThreadLength

22.2
ThreadPitch

16
ThreadSize

3/8
ThreadType

Unified
TotalLength

28.6
Coating View details

Features

Weld Studs technical drawing
