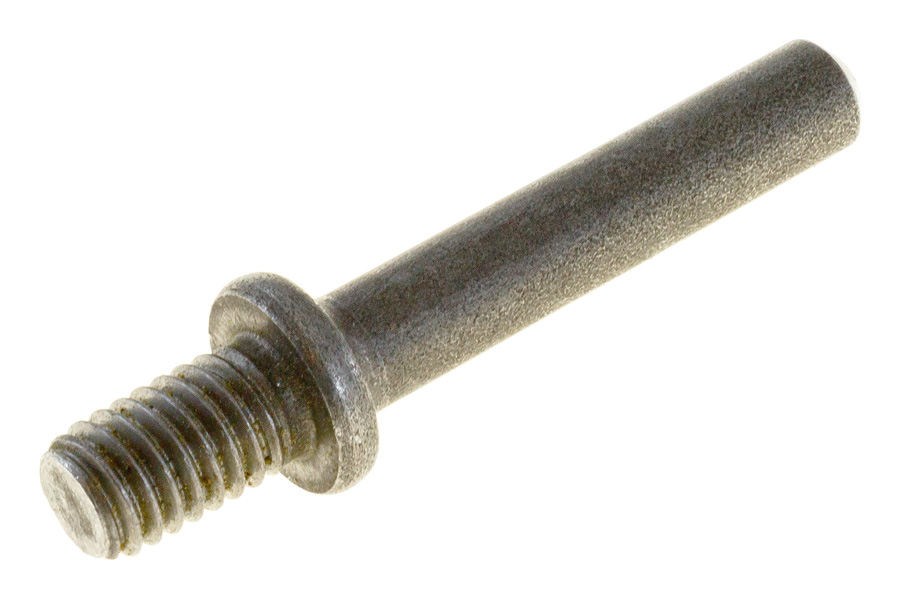

WD00417ADD - 3/8-16x.63(TL) W/.64(D) CLR X .33(D)x1.75(L) BODY W/

3/8-16x.63(TL) W/.64(D) CLR X .33(D)x1.75(L) BODY W/

Part № WD00417ADD

Coating None
threadsize 3/8
totallength 63.8
Request quantity

Technical details

Feature images are indicative only. Refer to technical drawing for final dimensions.

Box quantity

200
Comment

Aluminum tip
HeadDiameter

16.3
HeadHeight

3.3
PilotType

Undefined
PropertyClass

LowCarbonSteel
ThreadLength

16
ThreadPitch

16
ThreadSize

3/8
ThreadType

Unified
TotalLength

63.8
Coating View details

Features

Weld Studs technical drawing
