Feature images are indicative only. Refer to technical drawing for final dimensions.
| Box quantity | 2000 |
|---|---|
| 身长 | 14.5 |
| 原材料 | 钢 |
| 身体类型 | 开合 |
| 头部尺寸 | 13 |
| 头高 | 1.5 |
| 孔最大尺寸 | 9.1 |
| 孔最小尺寸 | 9 |
| 孔形状 | 六角 |
| 最大板材厚度 | 3 |
| 最小板材厚度 | 0.5 |
| 牙距 | 1 |
| 螺纹规格 | M6 |
| 螺纹类型 | Metric |
| 涂层 | 查看详情 |
我们的外螺纹紧固件产品专家理查德随时准备回答您的所有问题。

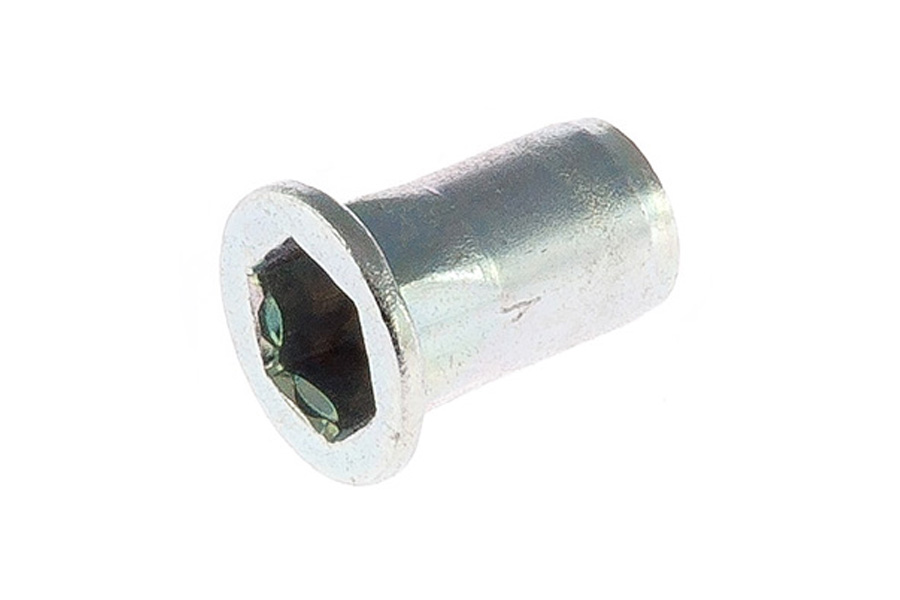

The W704010S437 rivet nut is a reliable choice for applications requiring strong fastening solutions, particularly in the automotive and manufacturing sectors. Designed with precision, this rivet nut boasts a Metric M6 thread size and a thread pitch of 1 mm, ensuring a secure hold. Sourced by Facil, this steel rivet nut exhibits exceptional durability and is ideal for use in materials where access is limited to one side.
The product features an open-end body type, allowing for ease of installation using a rivet nut setter. With a body length of 14.5 mm, it fits seamlessly into hexagonal holes that range from 9 mm to 9.1 mm in size. The flat head, measuring 13 mm in diameter with a height of 1.5 mm, provides stability and a neat finish upon installation. It accommodates panel thicknesses from 0.5 mm to 3 mm, making it versatile for different assembly requirements.
Available in a box quantity of 2000, this rivet nut not only meets high-quality standards but also ensures efficiency for any project scale. Whether for small businesses or larger enterprises, integrating this steel rivet nut into your assembly line guarantees a robust solution that aligns with industry norms.
Engineered for longevity, the steel construction of the rivet nut offers resistance to wear and tear, ensuring it withstands the demands of challenging environments. This makes it an excellent choice for projects requiring both reliability and performance. By choosing the W704010S437 rivet nut, you are investing in a product that supports your operational efficiency and integrity.
